PHAP5-30VA2K2T2N2 APEM 7.3mm Height Square 6mm x 6mm Through Hole Tactile Switch 160g

by APEM
SKU 486169

MPN: PHAP5-30VA2K2T2N2

Availability:
850 in stock
Original price £0.26 - Original price £0.26
Original price
£0.26 Inc VAT
£0.26 - £0.26
Current price £0.26 Inc VAT

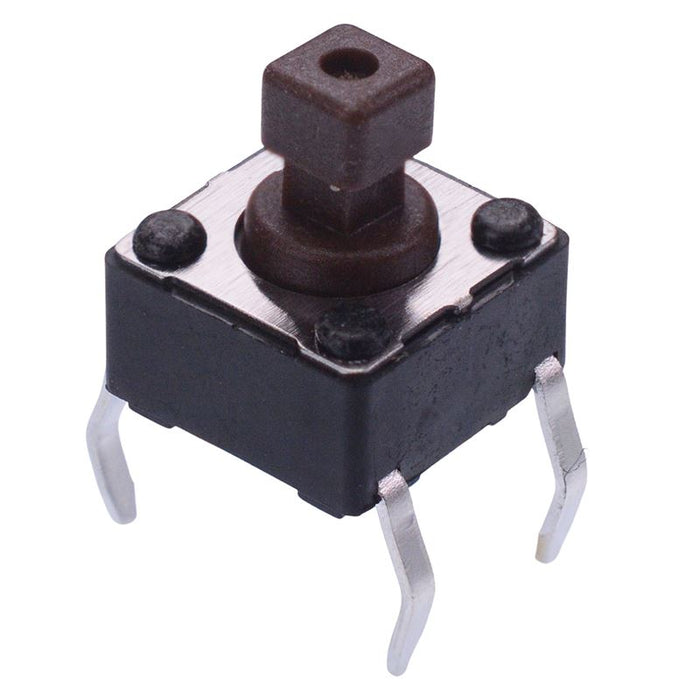

The PHAP5-30VA2K2T2N2 is a vertical tactile switch with a 6mm x 6mm standard package and 7.3mm height. The switch provides a positive tactile feedback and is supplied in bulk packaging, suitable for through hole mounting.

  • Vertical through hole mounting
  • 6mm x 6mm package
  • 7.3mm height
  • 2.4mm x 2.4mm square actuator
  • Rating: 50mA 12VDC
  • Operating force: 160g
  • Travel: 0.25mm
  • APEM PHAP5-30 series
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact material Silver Plated Phosphor Bronze
    Contact rating 50mA 12VDC
    Current rating 50mA
    Height 7.3mm
    Material Polyamide
    Moq 5
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating force 160g
    Operating temperature -25°C to +70°C
    Product series PHAP5-30
    Switch operation Off-(On)
    Terminal type Through Hole
    Voltage rating 12VDC
