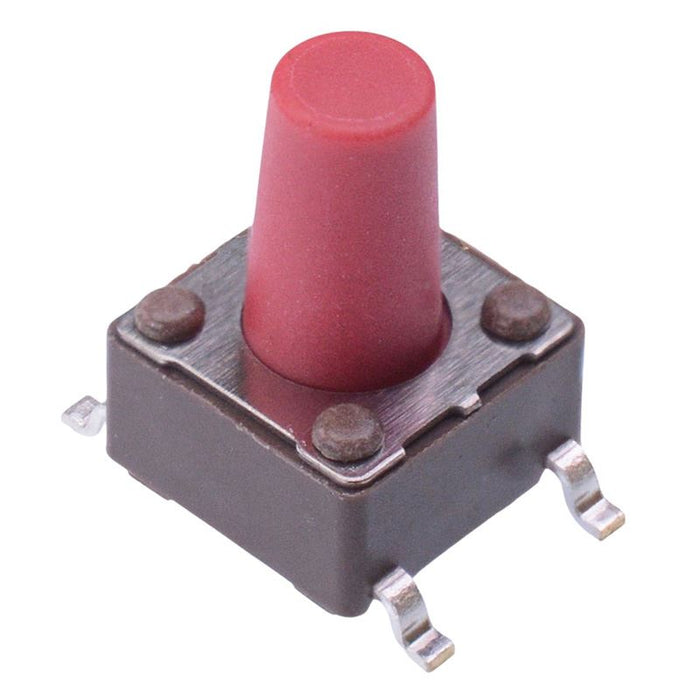

PHAP5-30VA2D3S2N3 APEM 9.5mm Height 6mm x 6mm Surface Mount Tactile Switch 260g Tube Packaging

by APEM
SKU 486164

MPN: PHAP5-30VA2D3S2N3

Availability:
385 in stock
Original price £0.27 - Original price £0.27
Original price
£0.27 Inc VAT
£0.27 - £0.27
Current price £0.27 Inc VAT
The PHAP5-30VA2D3S2N3 is a vertical tactile switch with a 6mm x 6mm standard package and 9.5mm height. The switch provides a positive tactile feedback and is supplied in tube packaging, suitable for SMT mounting.

  • Vertical SMT mounting
  • 6mm x 6mm package
  • 9.5mm height
  • Rating: 50mA 12VDC
  • Operating force: 260g
  • Travel: 0.25mm
  • APEM PHAP5-30 series
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact material Silver Plated Phosphor Bronze
    Contact rating 50mA 12VDC
    Current rating 50mA
    Height 9.5mm
    Material Polyamide
    Moq 5
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating force 260g
    Operating temperature -25°C to +70°C
    Product series PHAP5-30
    Switch operation Off-(On)
    Terminal type Surface Mount
    Voltage rating 12VDC
