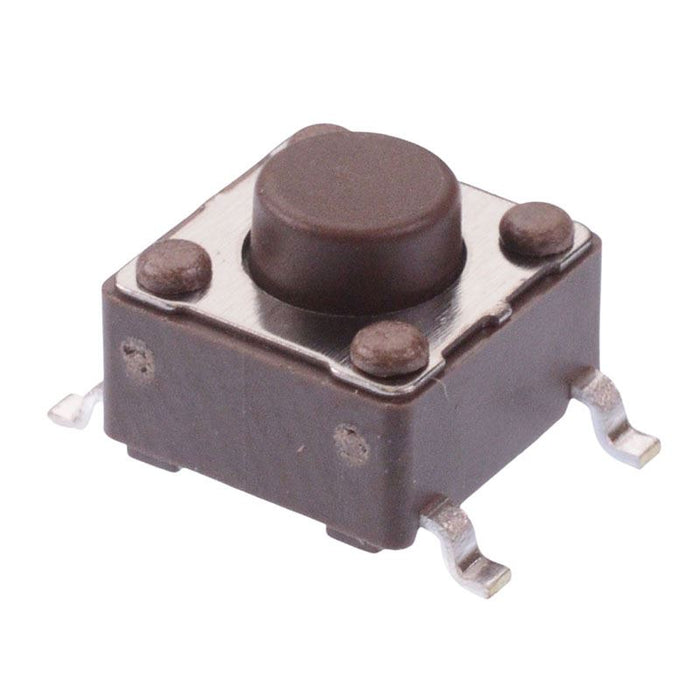

PHAP5-30VA2B2S2N4 5mm Height 6mm x 6mm Surface Mount Tactile Switch 160g Tape Packaging APEM
by APEM
SKU 486150
MPN: PHAP5-30VA2B2S2N4
Availability:
1000 in stock
Original price
£0.24
-
Original price
£0.24
Original price
£0.24
£0.24
£0.24
-
£0.24
Current price
£0.24
The PHAP5-30VA2B2S2N4 is a vertical tactile switch with a 6mm x 6mm standard package and 5mm height. The switch provides a positive tactile feedback and is supplied in tape and reel packaging, suitable for SMT mounting.
Vertical SMT mounting 6mm x 6mm package 5mm height Rating: 50mA 12VDC Operating force: 160g Travel: 0.25mm APEM PHAP5-30 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | SPST |
| Contact Material | Silver Plated Phosphor Bronze |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Height | 5mm |
| Material | Polyamide |
| MOQ | 10 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 160g |
| Operating Temperature | -25°C to +70°C |
| Product Series | PHAP5-30 |
| Switch Operation | Off-(On) |
| Terminal Type | Surface Mount |
| Voltage Rating | 12VDC |
