PHAP5-10VA2A2T2N3 APEM 4.3mm Height 3.5mm x 6mm Through Hole Tactile Switch Tube Packaging
by APEM
SKU 486119
MPN: PHAP5-10VA2A2T2N3
Availability:
Out of stock
Sold out
Original price
£0.25
-
Original price
£0.25
Original price
£0.25
Inc VAT
£0.25
-
£0.25
Current price
£0.25
Inc VAT

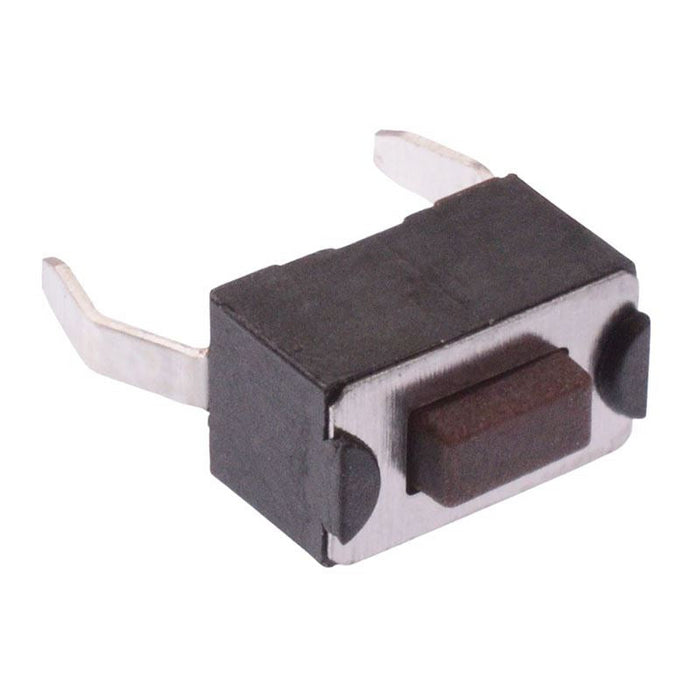

The PHAP5-10VA2A2T2N3 is a vertical tactile switch with a 3.5mm x 6mm standard package and 4.3mm height. The switch provides a positive tactile feedback and is supplied in tube packaging, suitable for through hole mounting.
Vertical through hole mounting 3.5mm x 6mm package 4.3mm height Rating: 50mA 12VDC Operating force: 160g Travel: 0.25mm APEM PHAP5-10 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Silver Plated Stainless Steel |
| Contact rating | 50mA 12VDC |
| Current rating | 50mA |
| Height | 4.3mm |
| Material | Polyamide |
| Moq | 5 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 160g |
| Operating temperature | -25°C to +70°C |
| Product series | PHAP5-10 |
| Switch operation | Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 12VDC |
