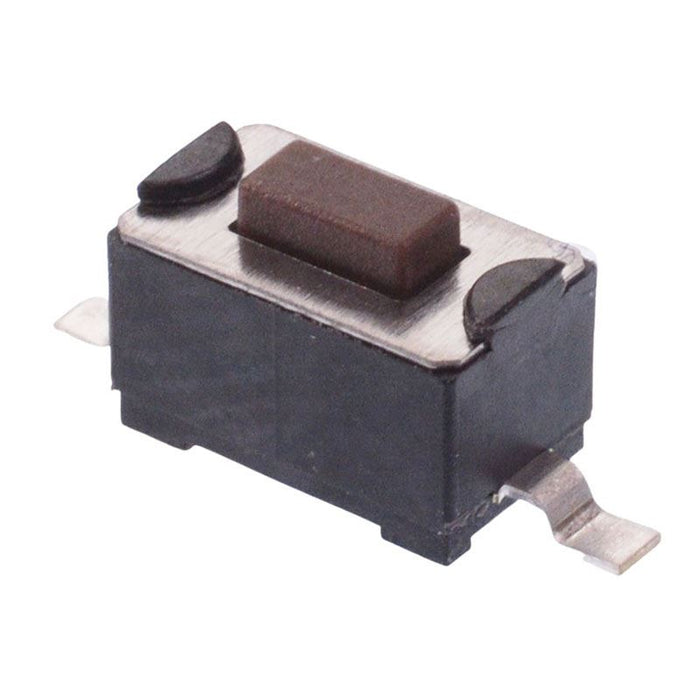

PHAP5-10VA2A2S2N4 APEM 4.3mm Height 3.5mm x 6mm Surface Mount Tactile Switch
by APEM
SKU 486117
MPN: PHAP5-10VA2A2S2N4
Availability:
1795 in stock
Original price
£0.28
-
Original price
£0.28
Original price
£0.28
Inc VAT
£0.28
-
£0.28
Current price
£0.28
Inc VAT
The PHAP5-10VA2A2S2N4 is a vertical tactile switch with a 3.5mm x 6mm standard package and 4.3mm height. The switch provides a positive tactile feedback and is supplied in tape and reel packaging, suitable for SMT mounting.
Vertical SMT mounting 3.5mm x 6mm package 4.3mm height Rating: 50mA 12VDC Operating force: 160g Travel: 0.25mm APEM PHAP5-10 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Silver Plated Stainless Steel |
| Contact rating | 50mA 12VDC |
| Current rating | 50mA |
| Height | 4.3mm |
| Material | Polyamide |
| Moq | 5 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 160g |
| Operating temperature | -25°C to +70°C |
| Product series | PHAP5-10 |
| Switch operation | Off-(On) |
| Terminal type | Surface Mount |
| Voltage rating | 12VDC |
