PBAT5AFB214 APEM Momentary NO 16mm Stainless Steel Piezo Switch Prewired IP68

by APEM
SKU 487858

MPN: PBAT5AFB214

Availability:
9 in stock
Original price £18.84 - Original price £18.84
Original price
£18.84 Inc VAT
£18.84 - £18.84
Current price £18.84 Inc VAT

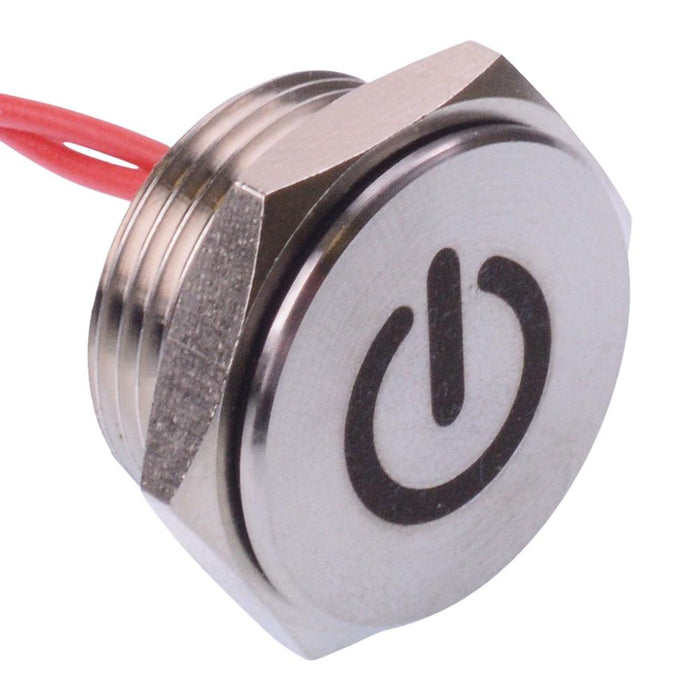

The PBAT5AFB214 is a 16mm momentary piezo switch manufactured by APEM with an engraved power symbol. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: stainless steel
  • Body colour: silver
  • Panel cut-out: 16mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: flat operator, 1mm height
  • Diameter: 18mm
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact rating 0.2A 24VAC/DC
    Current rating 0.2A
    Electrical life 50,000,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -40°C to +75°C
    Panel cut out 16mm
    Product series PBA
    Protection level IP68
    Switch operation Off-(On)
    Terminal type Flying Leads
    Voltage rating 24VAC/DC
