PBARYAFB000 APEM Momentary NO 22mm Stainless Steel Piezo Switch Prewired IP68

by APEM
SKU 488198

MPN: PBARYAFB000-TICK-OP-003050

Availability:
Only 4 left!
Original price £18.56 - Original price £18.56
Original price
£18.56 Inc VAT
£18.56 - £18.56
Current price £18.56 Inc VAT

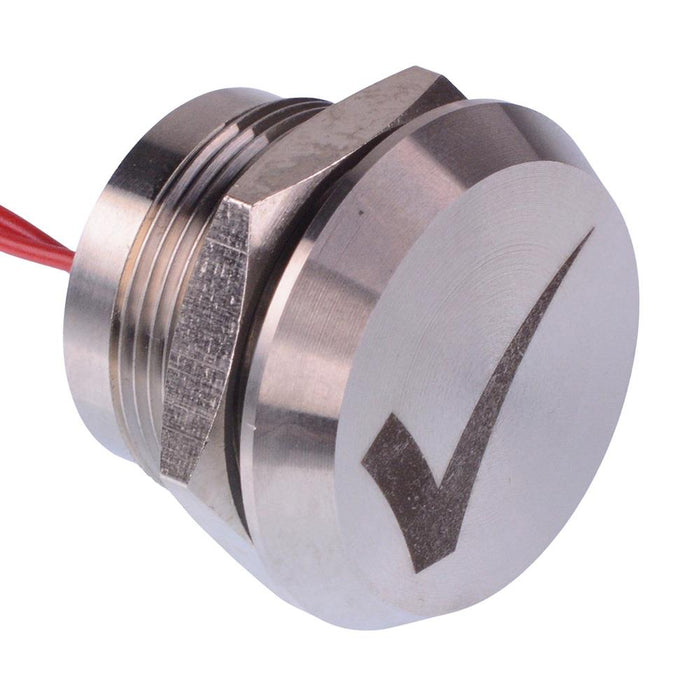

The PBARYAFB000 is a 22mm latching piezo switch manufactured by APEM with a laser marked tick. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: stainless steel 316L
  • Body colour: silver
  • Panel cut-out: 22mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: with chamfer, 4.5mm height
  • Diameter: 28mm
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact rating 0.2A 24VAC/DC
    Current rating 0.2A
    Electrical life 50,000,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -40°C to +75°C
    Panel cut out 22mm
    Product series PBA
    Protection level IP68
    Switch operation Off-(On)
    Terminal type Flying Leads
    Voltage rating 24VAC/DC
