PBAR9AFB000A0S APEM Red LED 5VDC Momentary NO 19mm Piezo Switch Prewired IP68
by APEM
SKU 490134
MPN: PBAR9AFB000A0S
Availability:
Only 3 left!
Original price
£62.08
-
Original price
£62.08
Original price
£62.08
£62.08
-
£62.08
Current price
£62.08

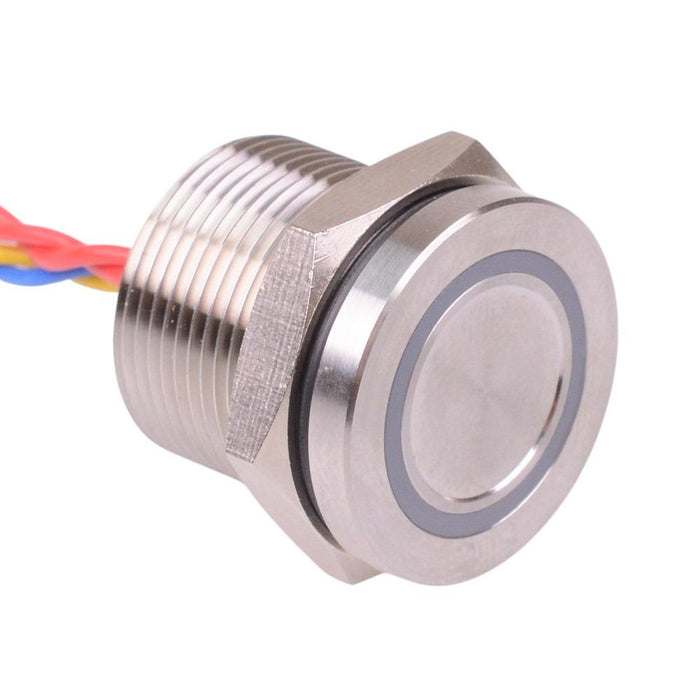

The PBAR9AFB000A0S is an illuminated 19.2mm momentary piezo switch manufactured by APEM. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: stainless steel LED colour: red illumination: ring, 5VDC Panel cut-out: 19.2mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 3mm height Diameter: 22.2mm
Specification
| Actuation | Momentary |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24VAC/DC |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 5VDC |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 19.2mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
