PBAR9AF1000N0B APEM Blue LED 12VDC Momentary NO 19mm Piezo Switch Prewired IP68
by APEM
SKU 490127
MPN: PBAR9AF1000N0B
Availability:
100 in stock
Original price
£41.92
-
Original price
£41.92
Original price
£41.92
Inc VAT
£41.92
-
£41.92
Current price
£41.92
Inc VAT

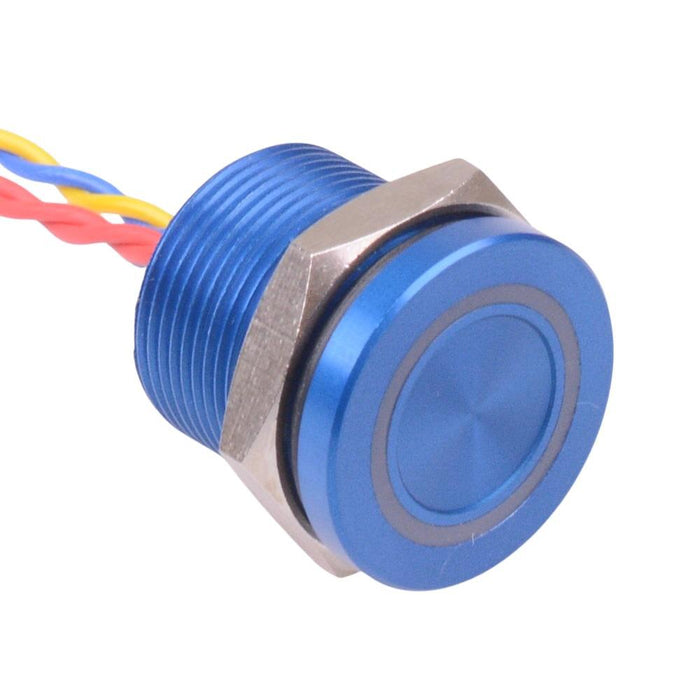

The PBAR9AF1000N0B is an illuminated 19.2mm momentary piezo switch manufactured by APEM. The switch features a blue anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: blue anodized Body colour: blue LED colour: blue illumination: ring, 12VDC Panel cut-out: 19.2mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 3mm height Diameter: 22.2mm
Specification
| Actuation | Momentary |
| Colour | Blue |
| Contact configuration | SPST |
| Contact rating | 0.2A 24VAC/DC |
| Current rating | 0.2A |
| Electrical life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Blue |
| Illumination voltage | 12VDC |
| Material | Anodized |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +75°C |
| Panel cut out | 19.2mm |
| Product series | PBA |
| Protection level | IP68 |
| Switch operation | Off-(On) |
| Terminal type | Flying Leads |
| Voltage rating | 24VAC/DC |
