PBAR91FB000 APEM Latching 19mm Stainless Steel Piezo Switch Prewired IP68 SPST

by APEM
SKU 487998

MPN: PBAR91FB000

Availability:
Out of stock
Sold out
Original price £42.41 - Original price £42.41
Original price
£42.41
£42.41 - £42.41
Current price £42.41

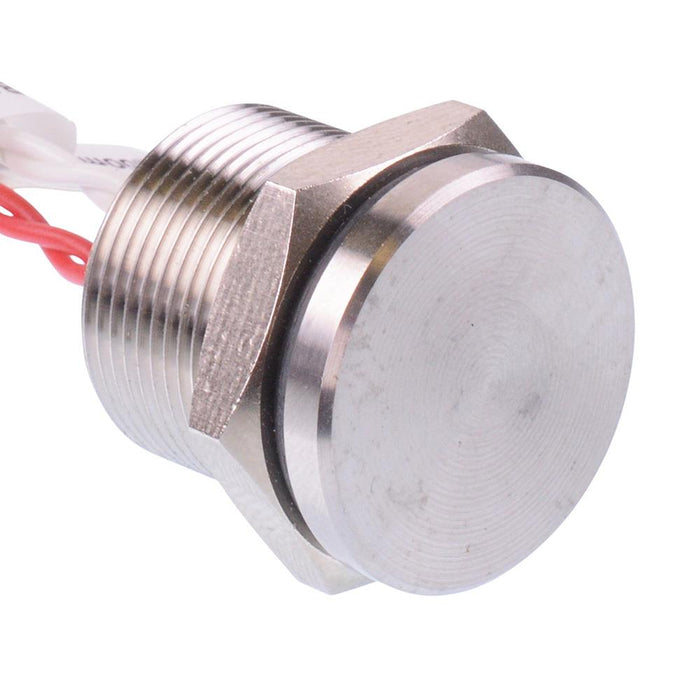

The PBAR91FB000 is a 19mm latching piezo switch manufactured by APEM. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: stainless steel 316L
  • Body colour: silver
  • Panel cut-out: 19mm
  • Contacts: SPST
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: flat operator, 3mm height
  • Diameter: 22mm
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration SPST
    Contact Rating 0.2A 24VAC/DC
    Current Rating 0.2A
    Electrical Life 50,000,000 Cycles
    Illuminated No
    Illumination Colour Non Illuminated
    Material Stainless Steel
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -40°C to +75°C
    Panel Cut Out 19mm
    Product Series PBA
    Protection Level IP68
    Switch Operation On-Off
    Terminal Type Flying Leads
    Voltage Rating 24VAC/DC
