PBAR2AF0000L0Y APEM Yellow illuminated 5VDC Momentary NO 22mm Piezo Switch Prewired IP68
by APEM
SKU 487593
MPN: PBAR2AF0000L0Y
Availability:
10 in stock
Original price
£34.47
-
Original price
£34.47
Original price
£34.47
Inc VAT
£34.47
-
£34.47
Current price
£34.47
Inc VAT

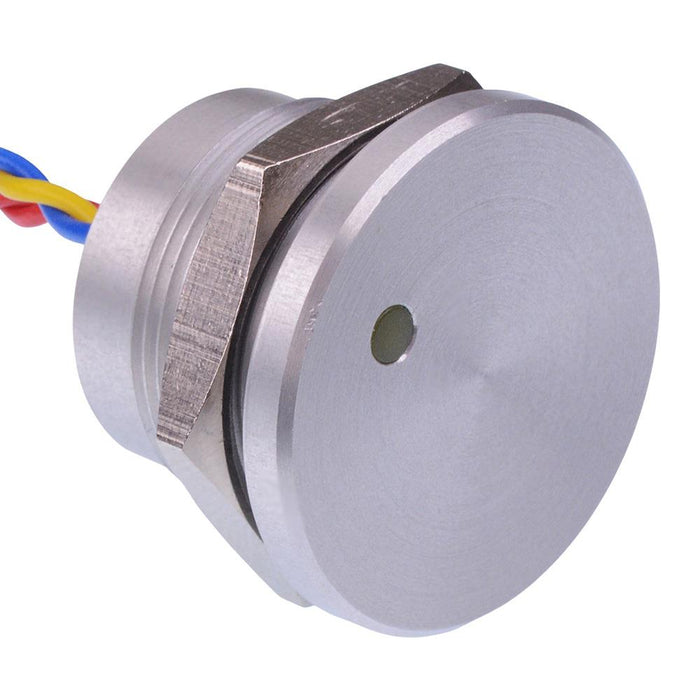

The PBAR2AF0000L0Y is an illuminated 22mm momentary piezo switch manufactured by APEM. The switch features a natural anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: natural anodized Body colour: silver LED colour: yellow illumination: dot, 5VDC Panel cut-out: 22mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 3mm height Diameter: 28mm
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Yellow |
| Contact configuration | SPST |
| Contact rating | 0.2A 24VAC/DC |
| Current rating | 0.2A |
| Electrical life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 5VDC |
| Material | Anodized |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -40°C to +75°C |
| Panel cut out | 22mm |
| Product series | PBA |
| Protection level | IP68 |
| Switch operation | Off-(On) |
| Terminal type | Flying Leads |
| Voltage rating | 24VAC/DC |
