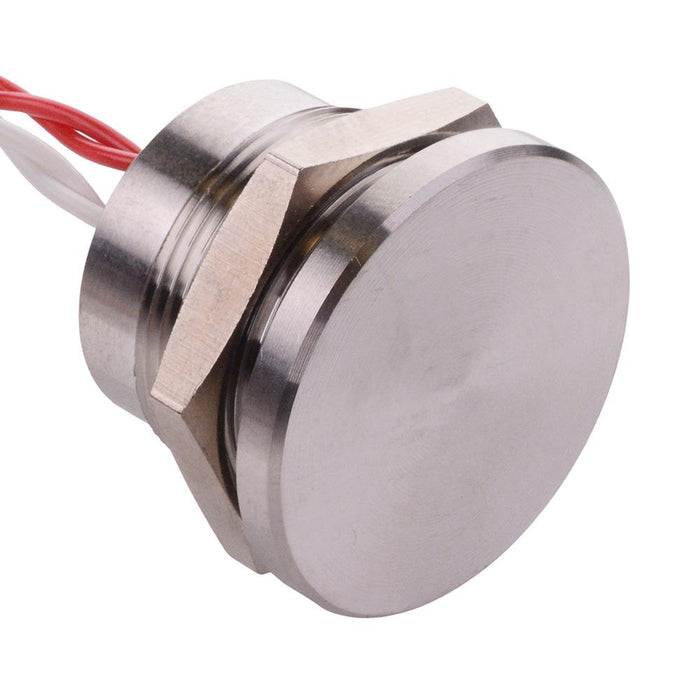

PBAR21FB000 APEM Latching 22mm Stainless Steel Piezo Switch Prewired IP68 SPST

by APEM
SKU 487378

MPN: PBAR21FB000

Availability:
19 in stock
Original price £40.82 - Original price £40.82
Original price
£40.82 Inc VAT
£40.82 - £40.82
Current price £40.82 Inc VAT
The PBAR21FB000 is a 22mm latching piezo switch manufactured by APEM. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: stainless steel 316L
  • Body colour: silver
  • Panel cut-out: 22mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 200mA 24VAC/DC
  • Terminals: flying leads
  • Bushing: flat operator, 3mm height
  • Diameter: 28mm
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPST
    Contact rating 0.2A 24VAC/DC
    Current rating 0.2A
    Electrical life 50,000,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -40°C to +75°C
    Panel cut out 22mm
    Product series PBA
    Protection level IP68
    Switch operation On-Off
    Terminal type Flying Leads
    Voltage rating 24VAC/DC
