PBAR1AFB000N0S APEM Red illuminated 12VDC Momentary NO 16mm Piezo Switch Prewired IP68
by APEM
SKU 487323
MPN: PBAR1AFB000N0S
Availability:
15 in stock
Original price
£37.14
-
Original price
£37.14
Original price
£37.14
£37.14
£37.14
-
£37.14
Current price
£37.14

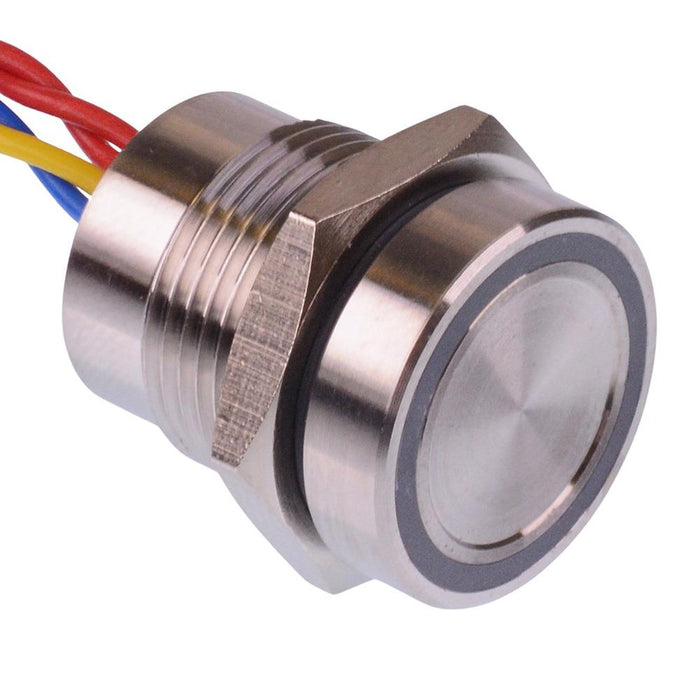

The PBAR1AFB000N0S is an illuminated 16mm momentary piezo switch manufactured by APEM. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: stainless steel 316L Body colour: silver LED colour: red illumination: ring, 12VDC Panel cut-out: 16mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 4.5mm height Diameter: 18mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24VAC/DC |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 16mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
