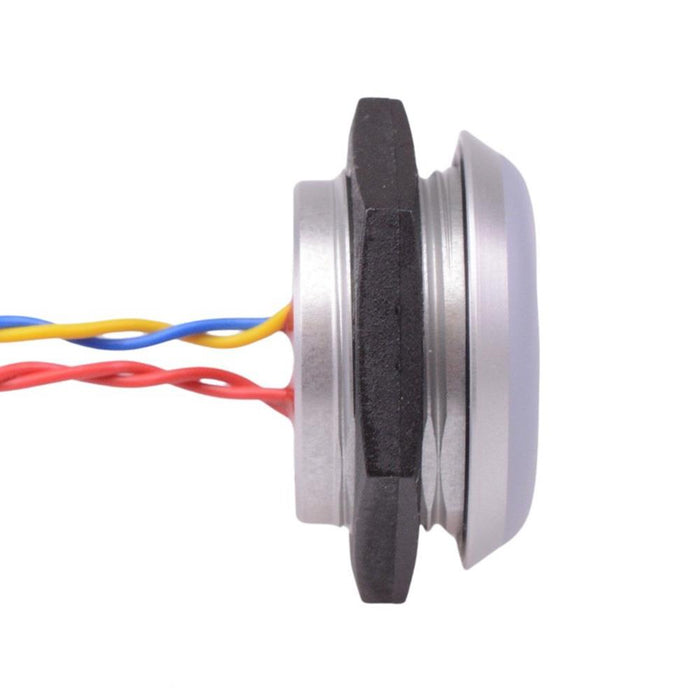

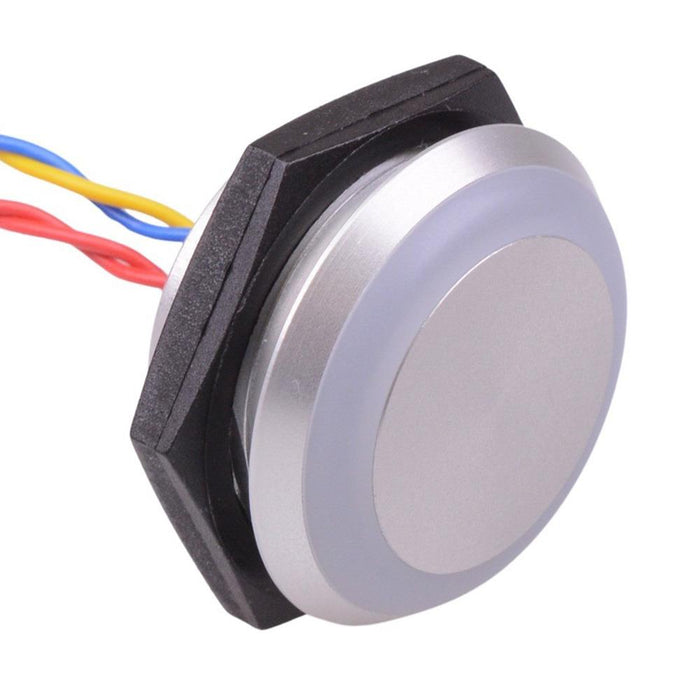

PBAM4AF0002D0S APEM Red LED 12VDC Momentary NO 30mm Piezo Switch Prewired IP68
by APEM
SKU 490106
MPN: PBAM4AF0002D0S
Availability:
61 in stock
Original price
£63.07
-
Original price
£63.07
Original price
£63.07
£63.07
-
£63.07
Current price
£63.07
The PBAM4AF0002D0S is an illuminated 30mm momentary piezo switch manufactured by APEM featuring a large actuation surface. The switch features a natural anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: natural anodized illumination: 12VDC red ring Panel cut-out: 30.5mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 1A 24VAC/DC Terminals: flying leads Operator: prominent, 5.5mm height Dimensions: 36 x 19mm (diameter x height)
Specification
| Actuation | Momentary |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 1A 24VAC/DC |
| Current Rating | 1A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Material | Anodized |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 30.5mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
