PBAM3AFB002E0B APEM Blue LED 24VDC Momentary NO 30mm Piezo Switch Prewired IP68

by APEM
SKU 490100

MPN: PBAM3AFB002E0B

Availability:
21 in stock
Original price £73.25 - Original price £73.25
Original price
£73.25 Inc VAT
£73.25 - £73.25
Current price £73.25 Inc VAT

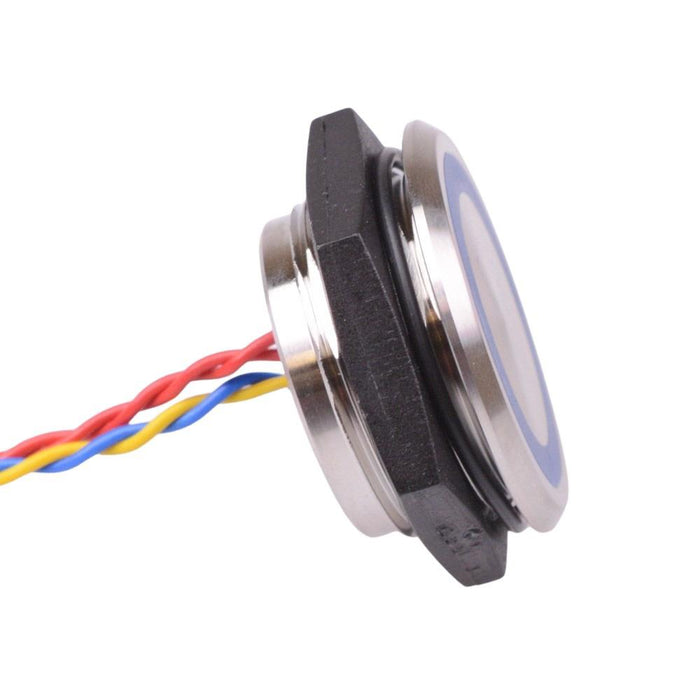

The PBAM3AFB002E0B is an illuminated 30mm momentary piezo switch manufactured by APEM featuring a large actuation surface. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: stainless steel 316L
  • illumination: 24VDC blue ring
  • Panel cut-out: 30.5mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 1A 24VAC/DC
  • Terminals: flying leads
  • Operator: flush, 2.5mm height
  • Dimensions: 36 x 16.5mm (diameter x height)
  • Specification
    Actuation Momentary
    Colour Blue
    Contact configuration SPST
    Contact rating 1A 24VAC/DC
    Current rating 1A
    Electrical life 50,000,000 Cycles
    Illuminated Yes
    Illumination colour Blue
    Illumination voltage 24VDC
    Material Stainless Steel
    Moq 1
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +75°C
    Panel cut out 30.5mm
    Product series PBA
    Protection level IP68
    Switch operation Off-(On)
    Terminal type Flying Leads
    Voltage rating 24VAC/DC
