PBAM1AF6002 APEM Red Momentary NO 30mm Piezo Switch Prewired IP68

by APEM
SKU 490099

MPN: PBAM1AF6002

Availability:
9 in stock
Original price £43.76 - Original price £43.76
Original price
£43.76
£43.76 - £43.76
Current price £43.76

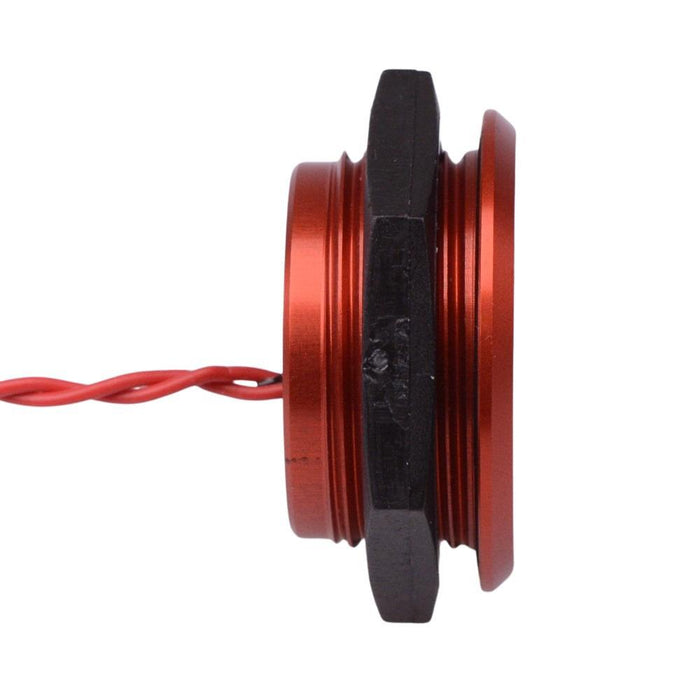

The PBAM1AF6002 is a 30mm momentary piezo switch manufactured by APEM featuring a large actuation surface. The switch features a red anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

  • Body material: red anodized
  • Body colour: red
  • Panel cut-out: 30.5mm
  • Contacts: SPST-NO
  • Protection rating: IP68, IP69K mounted on panel
  • Rating: 1A 24VAC/DC
  • Terminals: flying leads
  • Bushing: 2.5mm height
  • Dimensions: 36 x 16.5mm (diameter x height)
  • Specification
    Actuation Momentary
    Colour Red
    Contact Configuration SPST
    Contact Rating 1A 24VAC/DC
    Current Rating 1A
    Electrical Life 50,000,000 Cycles
    Illuminated No
    Material Anodized
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +75°C
    Panel Cut Out 30.5mm
    Product Series PBA
    Protection Level IP68
    Switch Operation Off-(On)
    Terminal Type Flying Leads
    Voltage Rating 24VAC/DC
