PBAM1AF2002 APEM Black Momentary NO 30mm Piezo Switch Prewired IP68
by APEM
SKU 490094
MPN: PBAM1AF2002
Availability:
51 in stock
Original price
£43.76
-
Original price
£43.76
Original price
£43.76
Inc VAT
£43.76
-
£43.76
Current price
£43.76
Inc VAT

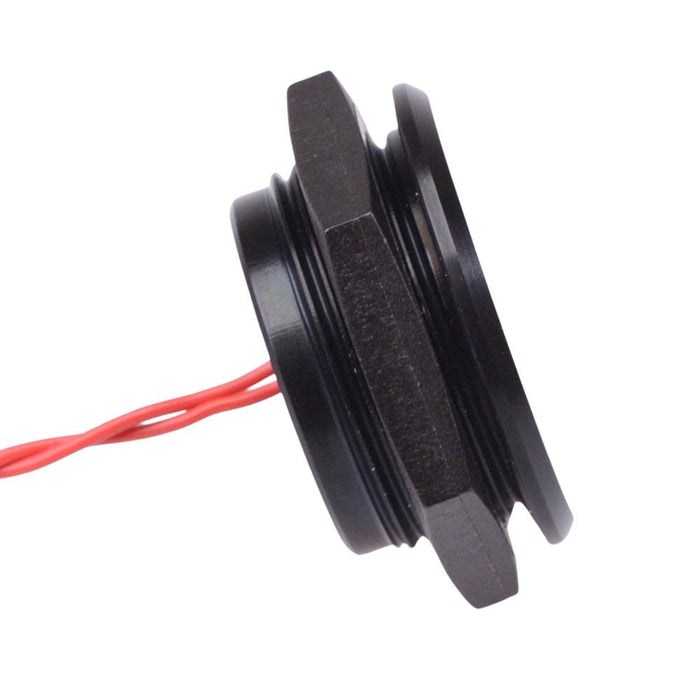

The PBAM1AF2002 is a 30mm momentary piezo switch manufactured by APEM featuring a large actuation surface. The switch features a black anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: black anodized Body colour: black Panel cut-out: 30.5mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 1A 24VAC/DC Terminals: flying leads Bushing: 2.5mm height Dimensions: 36 x 16.5mm (diameter x height)
Specification
Actuation | Momentary |
Colour | Black |
Contact configuration | SPST |
Contact rating | 1A 24VAC/DC |
Current rating | 1A |
Electrical life | 50,000,000 Cycles |
Illuminated | No |
Material | Anodized |
Moq | 1 |
Mounting style | Panel |
Number of poles | 1 |
Number of positions | 2 |
Operating temperature | -40°C to +75°C |
Panel cut out | 30.5mm |
Product series | PBA |
Protection level | IP68 |
Switch operation | Off-(On) |
Terminal type | Flying Leads |
Voltage rating | 24VAC/DC |
