Panel Mount Mega Fuse Holder
SKU 482292
MPN: 482292
Availability:
186 in stock
Original price
£7.46
-
Original price
£7.46
Original price
£7.46
Inc VAT
£7.46
-
£7.46
Current price
£7.46
Inc VAT

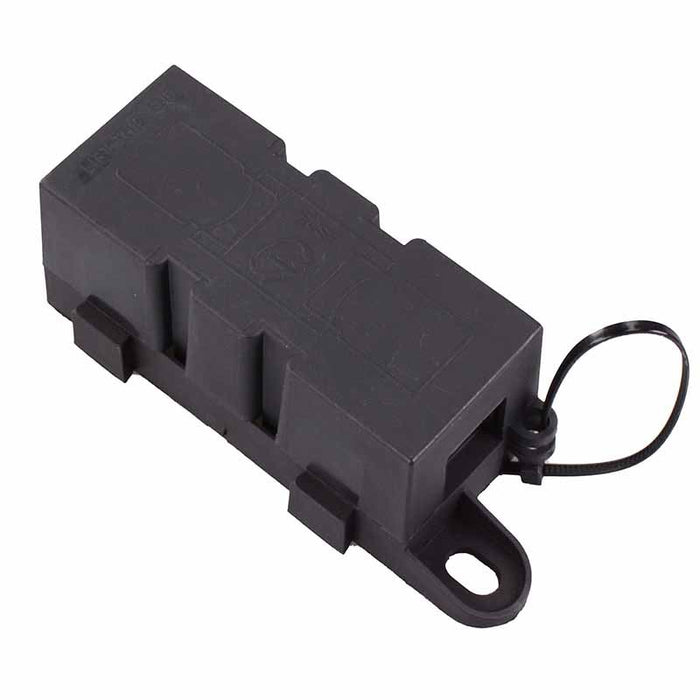

Mega fuse holder suitable for panel mount automotive applications. The cable connections are made using the 2 x 8mm studs, and the holder can be mounted onto a firm surface using the 2 fixing points located at the ends of the unit. The design allows multiple holders to be clipped together to form a fuse block.
Colour: black Voltage rating: 32VDC Current rating: 500A Cable size: 70mm2 max Fixing hole diameter: 6.0mm Includes M8 studs, nuts and washers Dimensions: 96.5 x 39 x 39mm (L x W x H)
Specification
| Back order lead time | 30 Days |
| Body material | Nylon 6.6 |
| Compatible wire size | 70mm² Max |
| Current rating | 500A |
| Fuse size | Mega |
| Mounting style | Panel Mount |
| Number of fuses | 1 |
| Voltage rating | 32VDC |
| Wire size | 70mm² Max |
