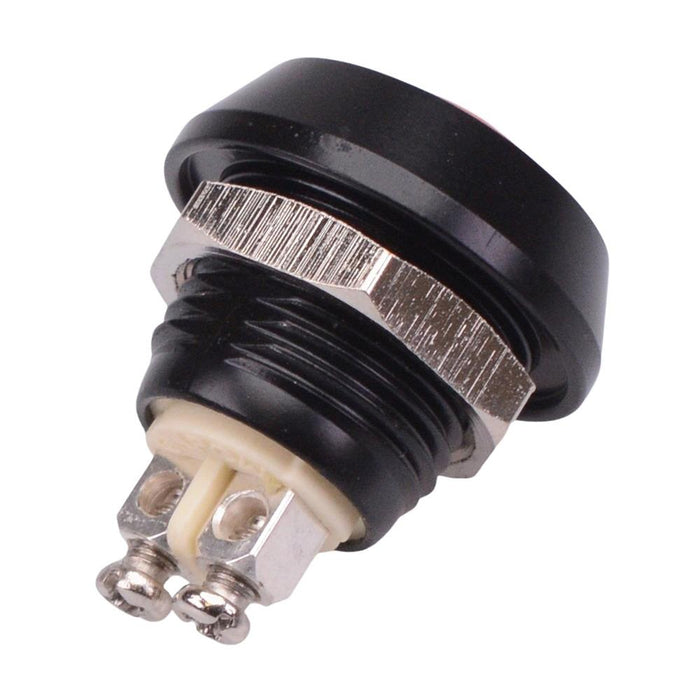

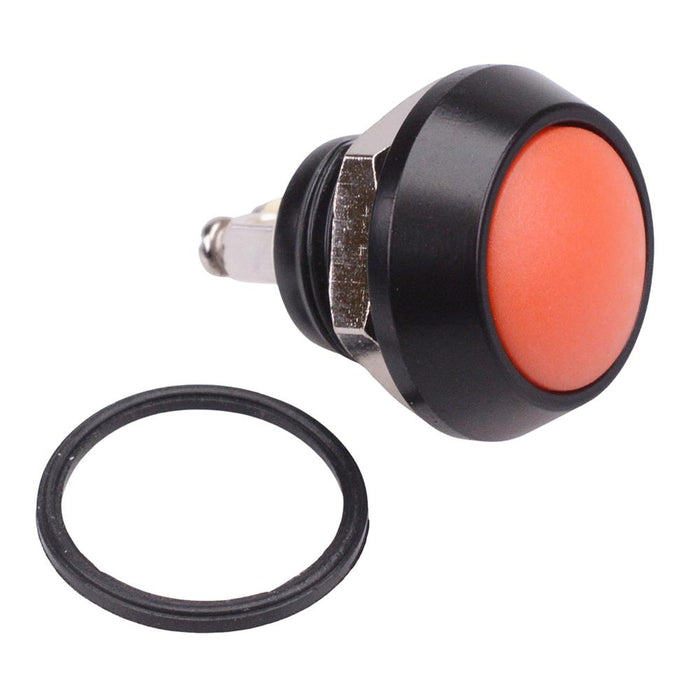

Orange Round Off-(On) Momentary 12mm Metal Push Button Switch Screw IP65 SPST
SKU 492082
MPN: V12B-10O-A
Availability:
Only 5 left!
Original price
£3.14
-
Original price
£3.14
Original price
£3.14
£3.30
£3.30
-
£3.30
Current price
£3.30
Orange momentary push button switch featuring a round actuator and normally open contacts. The switch features a zinc alloy housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.
Momentary operation SPST-NO contacts IP65 protection rating Screw terminals Panel cut-out: 12mm Panel thickness: 5mm max Rating: 3A 250V Dimensions: 19.5 x 17.5mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 7 |
| Colour | Orange |
| Contact Configuration | SPST |
| Contact Material | Silver Alloy |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Material | Zinc Alloy |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 5mm Max |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
