Orange LED 12V Latching Power Symbol 16mm Push Switch NO/NC
SKU 487210
MPN: 487210
Availability:
Out of stock
Sold out
Original price
£8.68
-
Original price
£8.68
Original price
£8.68
£8.68
£8.68
-
£8.68
Current price
£8.68

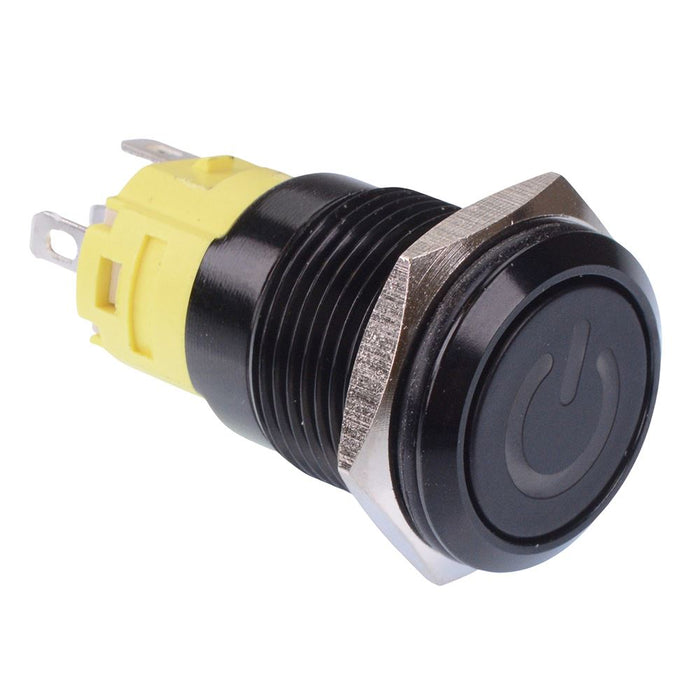

Vandal resistant push button switch manufactured from stainless steel, featuring a orange power symbol LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.
Latching On-On action Orange LED 12V illumination voltage IP65 protection rating 16mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 3A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Orange |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to 85°C |
| Panel Cut Out | 16mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
