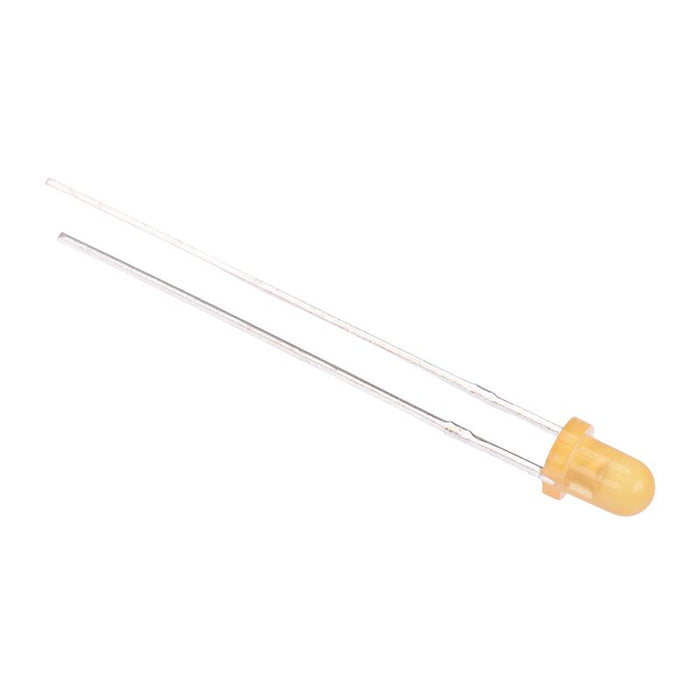

Orange 3mm Diffused LED 460mcd 60°
by Luckylight
SKU 484851
MPN: 304AD2C-1B
Availability:
2721 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
£0.18
-
£0.18
Current price
£0.18
Orange 3mm LED featuring a colour diffused package and 460mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 460mcd Wavelength: 605nm Viewing angle: 60° Forward voltage: 2.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Colour diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 40 Days |
| Colour | Orange |
| Diameter | 3mm |
| Forward Current | 25mA |
| Forward Voltage | 2.0V |
| Lens Colour | Orange |
| Lens Shape | Round |
| Luminous Intensity | 460mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 3mm |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Viewing Angle | 60° |
| Wavelength | 605nm |
