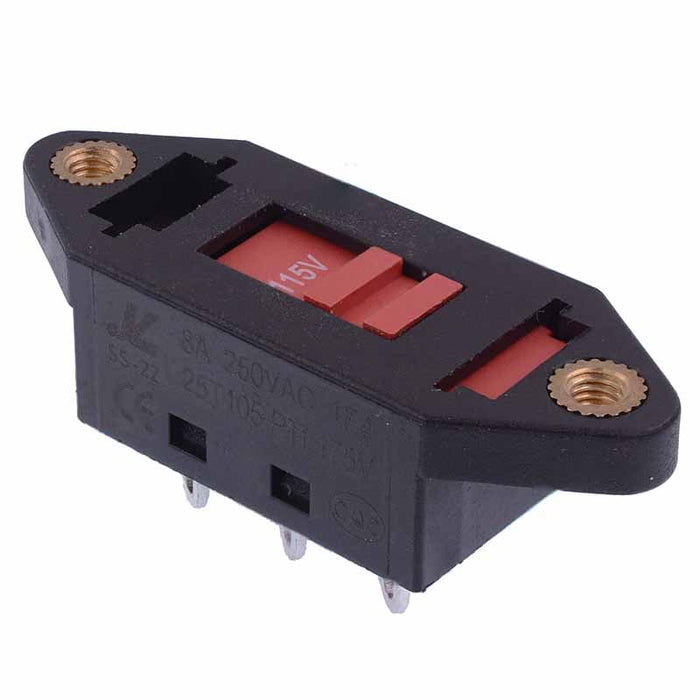

On-On Voltage Selector Slide Switch DPDT 6A

SKU 483112

MPN: 483112

Availability:
178 in stock
Original price £0.62 - Original price £0.62
Original price
£0.62 Inc VAT
£0.62 - £0.62
Current price £0.62 Inc VAT
On-On changeover voltage selector switch 115V and 230V markings. The switch features a flush actuator preventing accidental operation and is suitable for mounting to a panel.

  • On-On action
  • DPDT contacts
  • Solder terminals
  • Rating: 6A 250VAC, 12A 125VAC
  • M3 mounting holes
  • Mounting hole pitch: 34.2mm
  • Dimensions: 41.5 x 14.2 x 18mm (Length x Width x Height)
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Contact configuration DPDT
    Contact rating 6A 250VAC, 12A 125VAC
    Current rating 12A
    Electrical life 10,000 Cycles
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -30°C to +85°C
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
