On-On Voltage Selector Slide Switch DPDT
SKU 490369
MPN: RE-S-SS38-22J29-EG-7.1
Availability:
169 in stock
Original price
£0.48
-
Original price
£0.48
Original price
£0.48
£0.55
£0.55
-
£0.55
Current price
£0.55

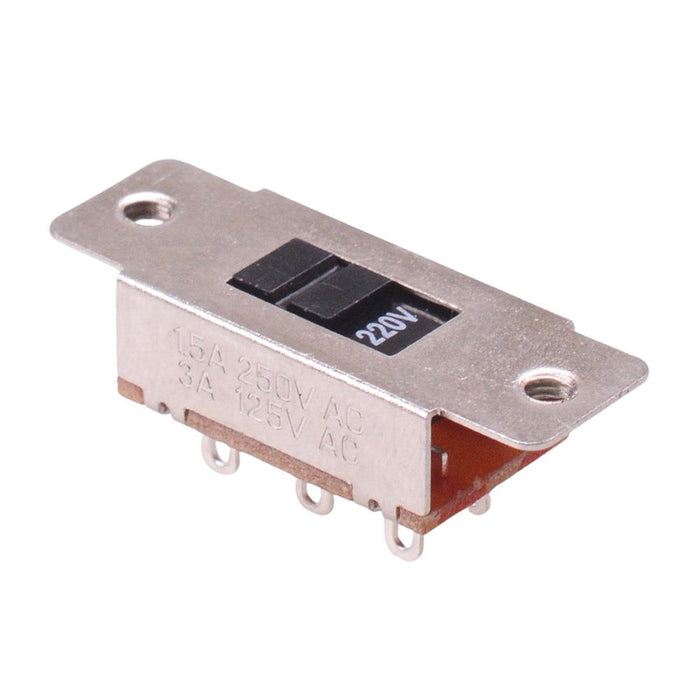

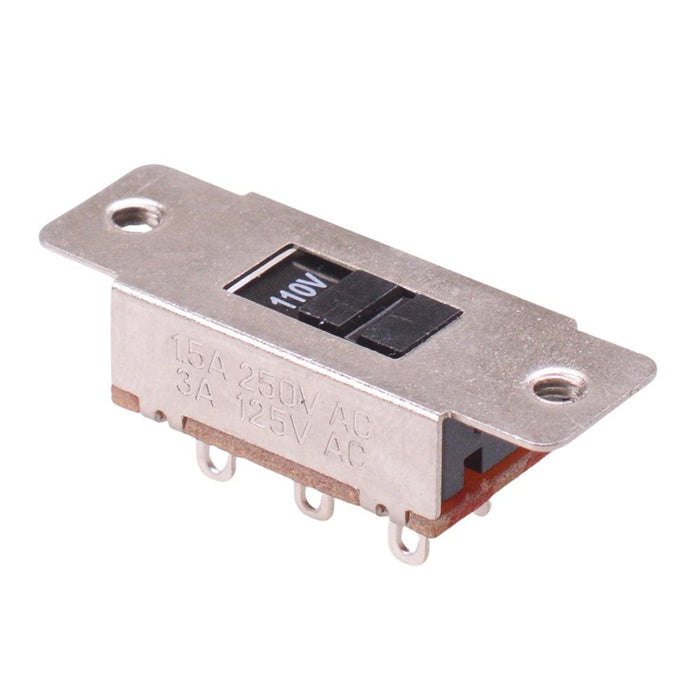

On-On slide switch featuring solder terminals and DPDT contact configuration, suitable for switching between 110V and 220V.
Rating: 1.5A 250VAC Flush actuator DPDT contacts 22.2 x 13mm panel cut out size M3 mounting holes Dimensions: 35.4 x 12.9 x 12.9mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | DPDT |
| Contact Rating | 1.5A 250VAC |
| Current Rating | 1.5A |
| Electrical Life | 10,000 Cycles |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
