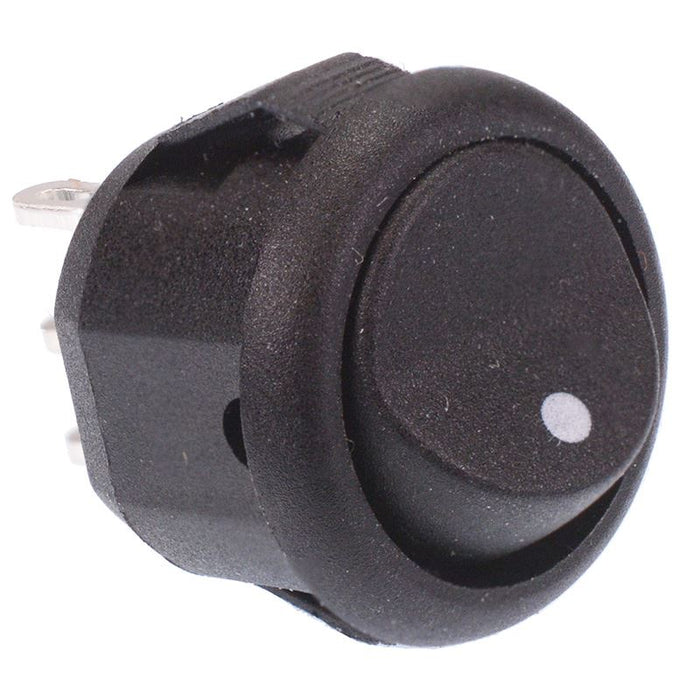

On-On Ultra Miniature 13mm Round Rocker Switch SPDT

by Canal
SKU 482719

MPN: SW-2738A

Availability:
674 in stock
Original price £1.13 - Original price £1.13
Original price
£1.13 Inc VAT
£1.13 - £1.13
Current price £1.13 Inc VAT
Ultra mini circular rocker switch with an On-On action and SPDT contacts, housed in a compact package requiring a 13mm panel cut-out diameter. The switch features solder terminals and snap-in mounting making them ideal for applications requiring a very small but reliable switch.

  • On-On action
  • SPDT contacts
  • Solder terminals
  • Panel cut-out: 13mm
  • Dimensions: 19.6 x 15mm (Height x Diameter)
  • Rating: 3A 125VAC, 1.5A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 3A 125VAC, 1.5A 250VAC
    Current rating 3A
    Electrical life 30,000 Cycles
    Illuminated No
    Material PA66
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Panel cut out 13mm
    Panel thickness 2mm Maximum
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
