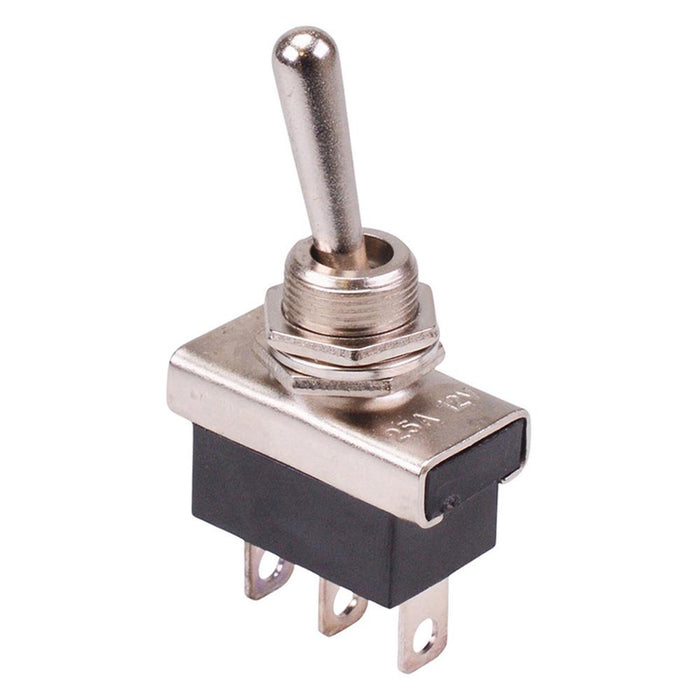

On-On Toggle Switch SPDT 25A 12VDC

SKU 481958

MPN: 481958

Availability:
884 in stock
Original price £1.31 - Original price £1.31
Original price
£1.31
£1.31 - £1.31
Current price £1.31
On-On standard size toggle switch featuring SPDT contacts and 6.3mm quick connect terminals. The switches provide a low cost solution for applications including automotive.

  • On-On action
  • SPDT contacts
  • 12.2mm panel cut-out
  • Quick connect terminals
  • Rating: 6A 125VAC, 3A 250VAC, 25A 12VDC
  • Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Contact Configuration SPDT
    Contact Rating 6A 125VAC, 3A 250VAC, 25A 12VDC
    Current Rating 25A
    Electrical Life 10,000 Cycles
    Illuminated No
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -25°C to +85°C
    Panel Cut Out 12.2mm
    Switch Operation On-On
    Terminal Type Quick Connect
    Voltage Rating 12VDC / 250VAC
