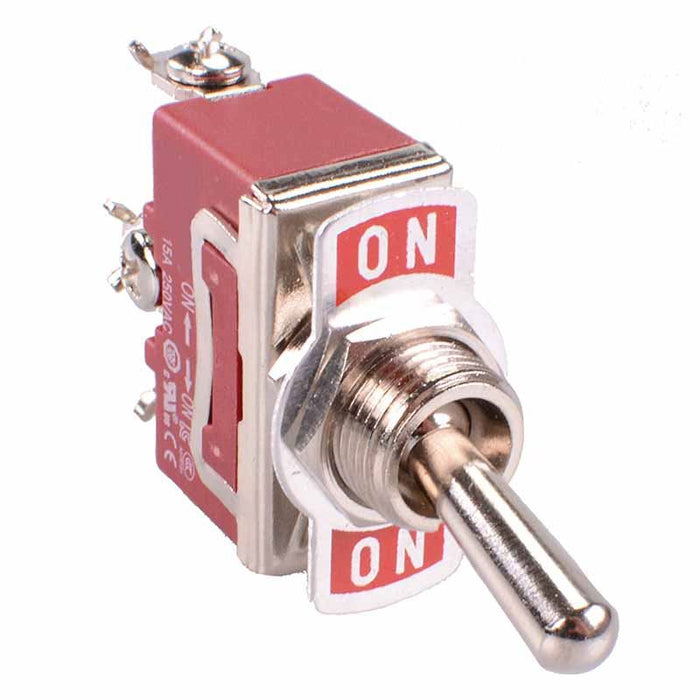

On-On Toggle Switch Screw Terminals 250V 15A SPDT

SKU 482556

MPN: 482556

Availability:
323 in stock
Original price £2.13 - Original price £2.13
Original price
£2.13 Inc VAT
£2.13 - £2.13
Current price £2.13 Inc VAT
On-On toggle switch featuring SPDT contacts, a reliable mechanism and screw terminals suitable for panel mount applications.

  • Contact current: 15A
  • Contact voltage: 250VAC
  • 12mm panel cut-out
  • Screw terminals
  • Metal lever actuator
  • Includes nameplate
  • CCC, CE, TUV approved
  • Dimensions: 56 x 29 x 16mm (Height x Length x Width)
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Contact configuration SPDT
    Contact rating 15A 250VAC
    Current rating 15A
    Electrical life 100,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +80°C
    Panel cut out 12mm
    Protection level IP40
    Switch operation On-On
    Terminal type Screw
    Voltage rating 250VAC
