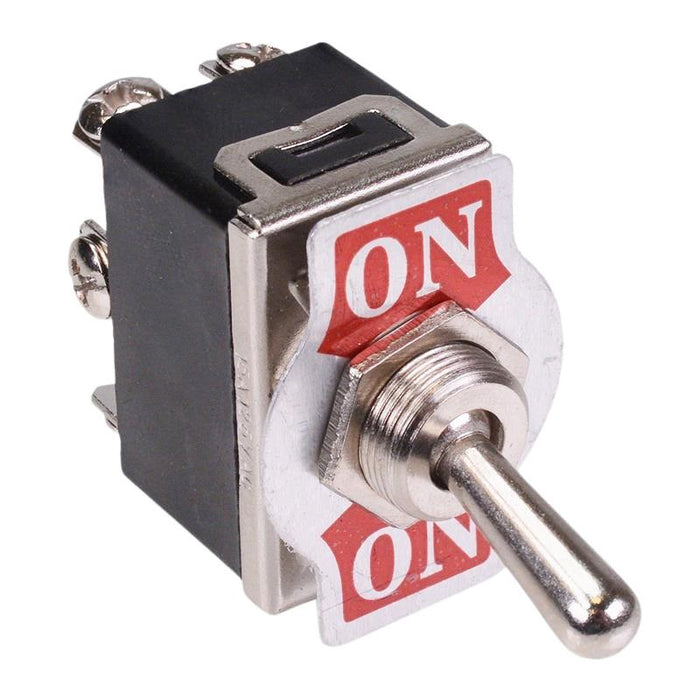

On-On Toggle Switch Screw Terminals 10A 250VAC DPDT

SKU 112031

MPN: 112031

Availability:
189 in stock
Original price £1.91 - Original price £1.91
Original price
£1.91 Inc VAT
£1.91 - £1.91
Current price £1.91 Inc VAT
Standard size toggle switch with screw terminals and supplied with indicator plate.

  • On-On action
  • DPDT contacts
  • 12mm panel cut-out
  • 10A 250VAC rating
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Contact configuration DPDT
    Contact rating 10A 250VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 12.2mm
    Switch operation On-On
    Terminal type Screw
    Voltage rating 250VAC
