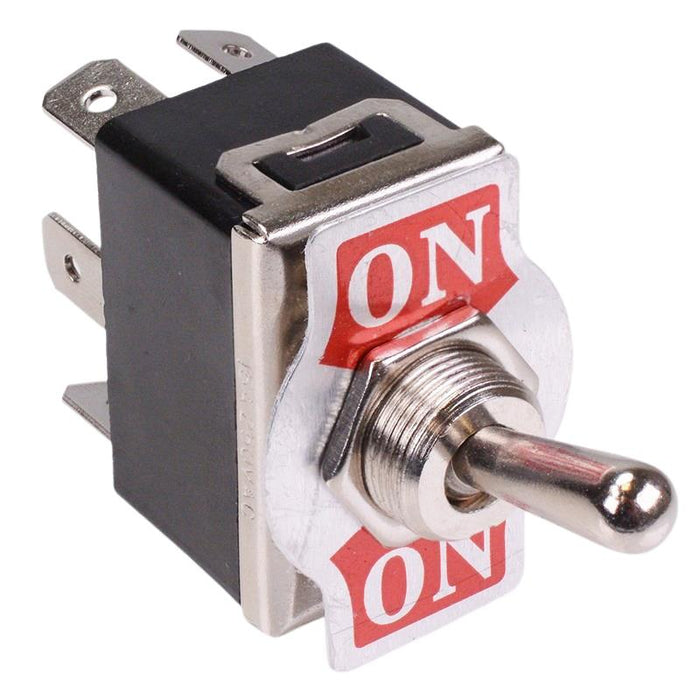

On-On Toggle Switch DPDT 15A 250VAC
SKU 112015
MPN: 112015
Availability:
218 in stock
Original price
£2.27
-
Original price
£2.27
Original price
£2.27
Inc VAT
£2.27
-
£2.27
Current price
£2.27
Inc VAT
Standard toggle switch with DPDT contacts and on-on action. The switches are suitable for panel mounting and have quick connect terminals making them ideal for a wide range of applications.
DPDT contacts On-On action 6.3mm quick connect terminals Panel cut-out diameter: 12mm Maximum current: 15A Maximum voltage: 250VAC Maximum Panel Thickness: 5mm Dimensions: 56.3 x 33 x 19.8mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Contact configuration | DPDT |
| Contact rating | 15A 250VAC |
| Current rating | 15A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12.2mm |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
