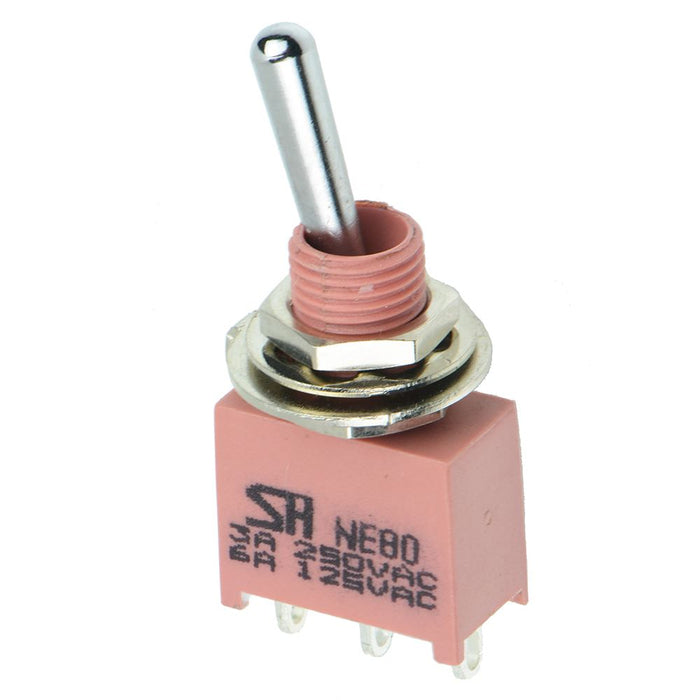

On-On Sealed IP67 Miniature Toggle Switch 6A SPDT
by Salecom
SKU 550427
MPN: NE8013-SECR-H
Availability:
790 in stock
Original price
£1.58
-
Original price
£1.58
Original price
£1.58
£1.58
£1.58
-
£1.58
Current price
£1.58
On-On sealed miniature toggle switch with SPDT contacts and IP67 protection rating, suitable for panel mounting applications.
Rating: 6A 125VAC / 28VDC SPDT contacts Panel cut-out: 6.35mm Solder terminals IP67 protection rating Dimensions: 34.4 x 6.8 x 12.8mm (H x W x L)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| colour | Red |
| Contact Configuration | SPDT |
| Contact Rating | 6A 125VAC/28VDC |
| Current Rating | 6A |
| Electrical Life | 50000 Cycles Min |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 6.35mm |
| Protection Level | IP67 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 125VAC / 28VDC |
