On-On-On 3 Way 19mm Key Switch DP3T 4A LK6JNB126N3

by APEM
SKU 485819

MPN: LK6JNB126N3

Availability:
46 in stock
Original price £13.55 - Original price £13.55
Original price
£13.55 Inc VAT
£13.55 - £13.55
Current price £13.55 Inc VAT

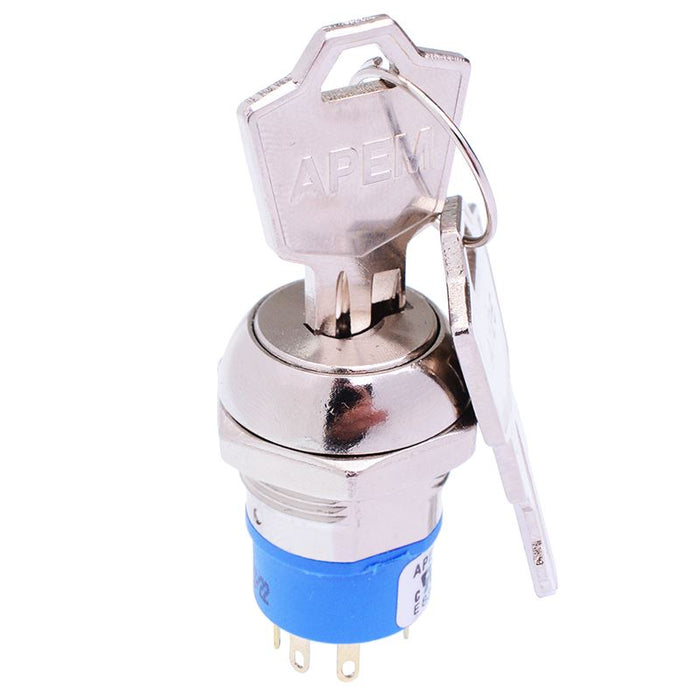

The LK6JNB126N3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features DP3T contacts and 3 maintained positions with key withdrawal in position 1,2,&3. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

  • 3 positions
  • Maintained switching
  • DP3T contacts
  • Nickel plated finish
  • Key withdrawal in position 1,2,3
  • Panel cut-out: 19mm
  • Indexing: 45°
  • Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
  • Mechanical and electrical life: 6000 cycles at full load
  • Dimensions: 28.8 x 22mm (length x diameter)
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Nickel Plated
    Contact configuration DP3T
    Contact material Gold Plated Copper Alloy
    Contact rating 4A 125VAC / 28VDC, 2A 250VAC
    Current rating 4A @ 125VAC / 28VDC
    Electrical life 6000 Cycles
    Key index angle 45°
    Key withdrawal position 1, 2 & 3
    Mounting style Panel Mount
    Number of positions 3
    Operating temperature -30°C to +85°C
    Panel cut out 19mm
    Product series LK
    Protection level Gold Plated Copper Alloy
    Switch operation On-On-On
    Terminal type Solder
    Voltage rating 250VAC
