On-(On) Momentary Foot Switch Side Terminals DPDT
SKU 119004
MPN: 119004
Availability:
78 in stock
Original price
£2.39
-
Original price
£2.39
Original price
£2.39
£2.39
-
£2.39
Current price
£2.39

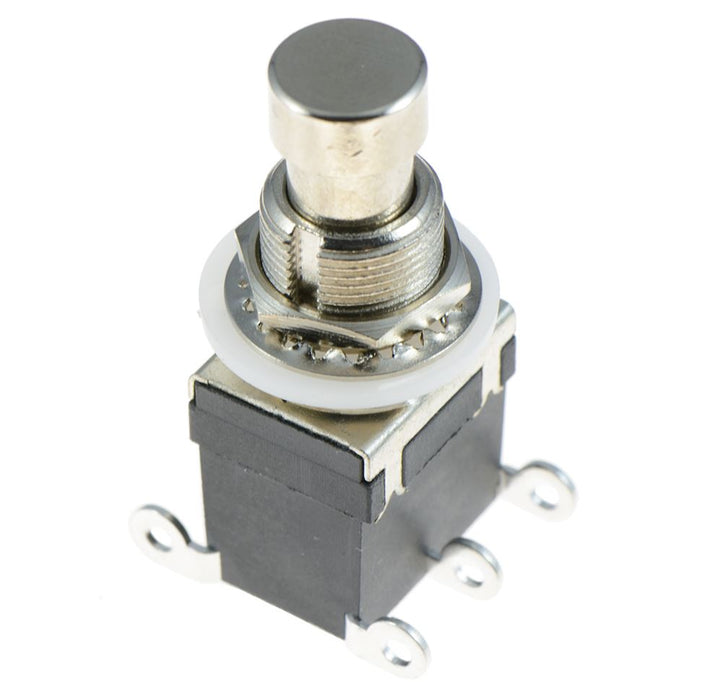

DPDT footswitch with a momentary push button action, ideal for machinery and music applications including foot pedals.
DPDT contacts Momentary action On-(On) operation Side mounted solder terminals Suitable for panel mounting and secured by nut Panel cut-out: 12mm Maximum Panel Thickness: 4mm Dimensions: 42.5 x 17.2 x 23.5mm (Height x Length x Width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Contact Configuration | DPDT |
| Contact Rating | 2A 250VAC |
| Current Rating | 2A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
