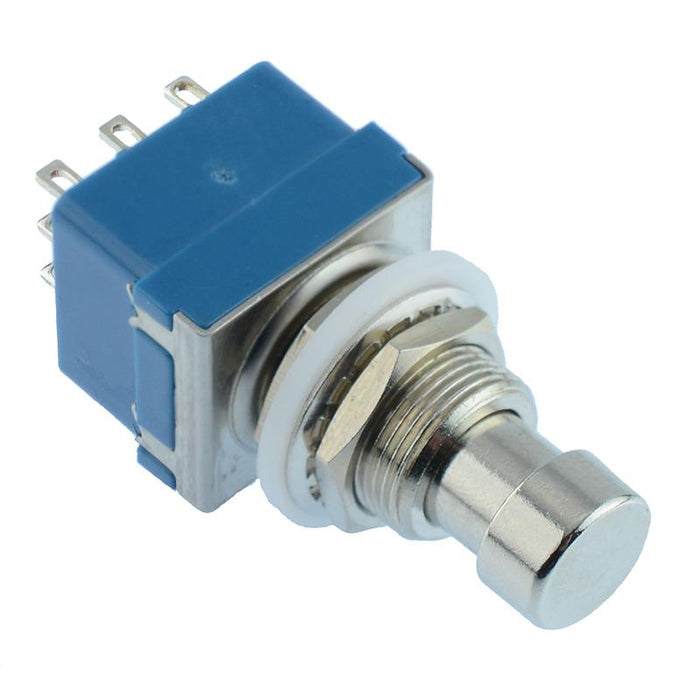

On-(On) Momentary Foot Switch 3PDT

SKU 551791

MPN: 551791

Availability:
89 in stock
Original price £5.16 - Original price £5.16
Original price
£5.16 Inc VAT
£5.16 - £5.16
Current price £5.16 Inc VAT
3PDT footswitch with a momentary push button action, ideal for machinery and music applications including foot pedals.

  • 3PDT contacts
  • Momentary On-(On) action
  • Solder terminals
  • Suitable for panel mounting and secured by nut
  • Panel cut-out: 12mm
  • Maximum Panel Thickness: 4mm
  • Dimensions: 42.1 x 17 x 19.6mm (Height x Length x Width)
  • Specification
    Actuation Momentary
    Back order lead time 40 Days
    Contact configuration 3PDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 50,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 6mm
    Switch operation On-(On)
    Terminal type Solder
    Voltage rating 250VAC
