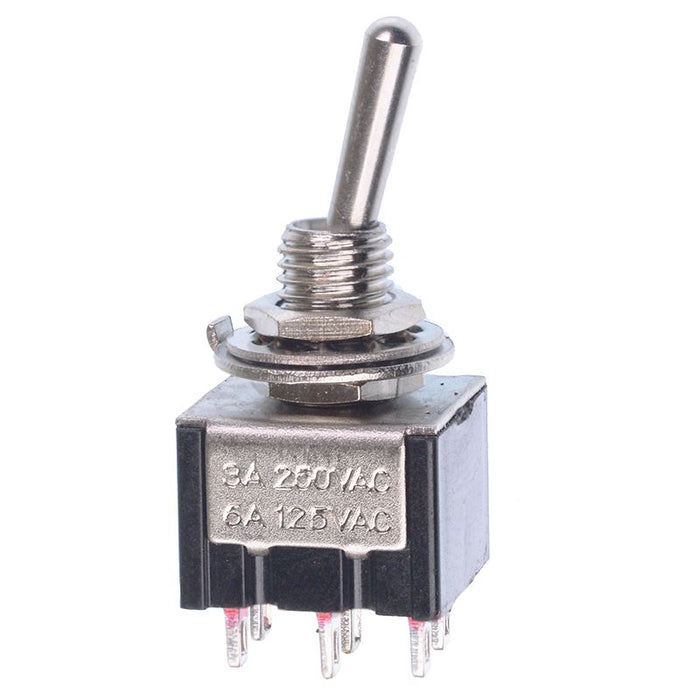

On-On Miniature Toggle Switch DPDT
SKU 112008
MPN: 112008
Availability:
2814 in stock
Original price
£0.75
-
Original price
£0.75
Original price
£0.75
Inc VAT
£0.75
-
£0.75
Current price
£0.75
Inc VAT
Miniature size toggle switches suitable for a wide range of applications where a small reliable switch is required.
On-On action DPDT contacts 6mm panel cut-out Solder terminals Secured with nut Maximum current: 3A Maximum voltage: 250VAC Dimensions: 32.3 x 11.6 x 12.9m (Height x Width x Length) Maximum Panel Thickness: 3mm
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Contact configuration | DPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 6mm |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 250VAC |
