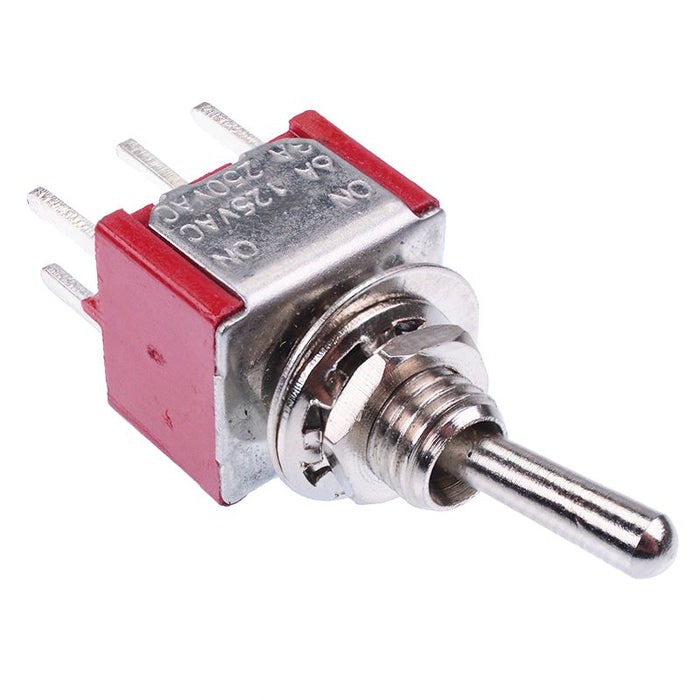

On-On Miniature PCB Toggle Switch DPDT

SKU 482840

MPN: 482840

Availability:
Out of stock
Sold out
Original price £0.75 - Original price £0.75
Original price
£0.75 Inc VAT
£0.75 - £0.75
Current price £0.75 Inc VAT
Mini On-On toggle switch featuring DPDT contacts and a compact size, suitable for PCB applications requiring a 2 pole small packaged switch.

  • On-On action
  • DPDT contacts
  • Solder PCB terminals
  • Rating: 6A 125VAC, 3A 250VAC
  • Panel cut-out: 6mm
  • Terminal pitch: 4.7mm
  • Dimensions: 35.6 x 12.7 x 13.2mm (Height x Width x Length)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration DPDT
    Contact rating 6A 125VAC, 3A 250VAC
    Current rating 6A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 2
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 6mm
    Pitch 4.7mm
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
