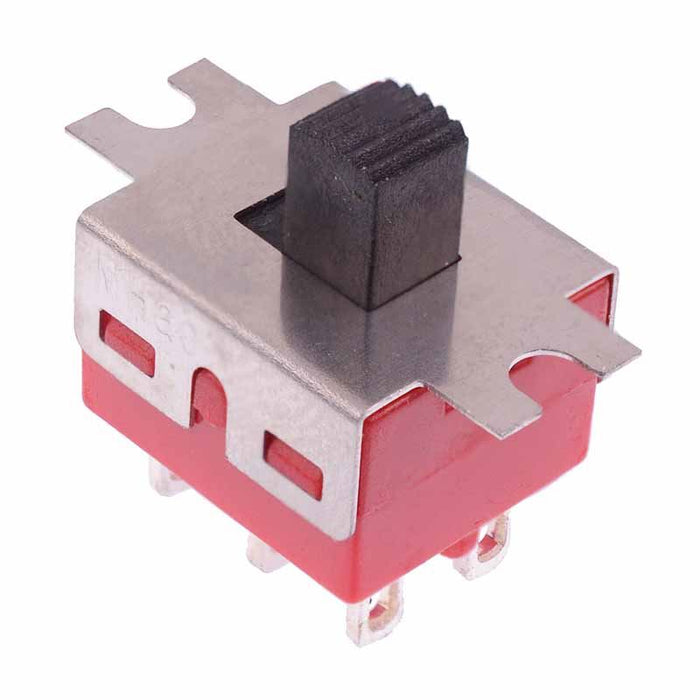

On-On Mini Slide Switch DPDT 5A

SKU 483107

MPN: 483107

868 in stock
Original price £0.97 - Original price £0.97
Original price
£0.97 Inc VAT
£0.97 - £0.97
Current price £0.97 Inc VAT
On-On miniature slide switch featuring DPDT contacts and solder terminals. The switch features a 5A current rating making them ideal for higher current applications requiring a small packaged switch.

  • On-On action
  • DPDT contacts
  • Solder terminals
  • 5mm knob height
  • Rating: 2A 250VAC, 5A 125VAC / 28VDC
  • Mounting hole pitch: 17.5mm
  • Dimensions: 19.56 x 11.43 x 16.6mm (Length x Width x Height)
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Contact configuration DPDT
    Contact rating 2A 250VAC, 5A 125VAC / 28VDC
    Current rating 5A
    Electrical life 30,000 Cycles
    Material DAP & Stainless Steel
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -30°C to +85°C
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
