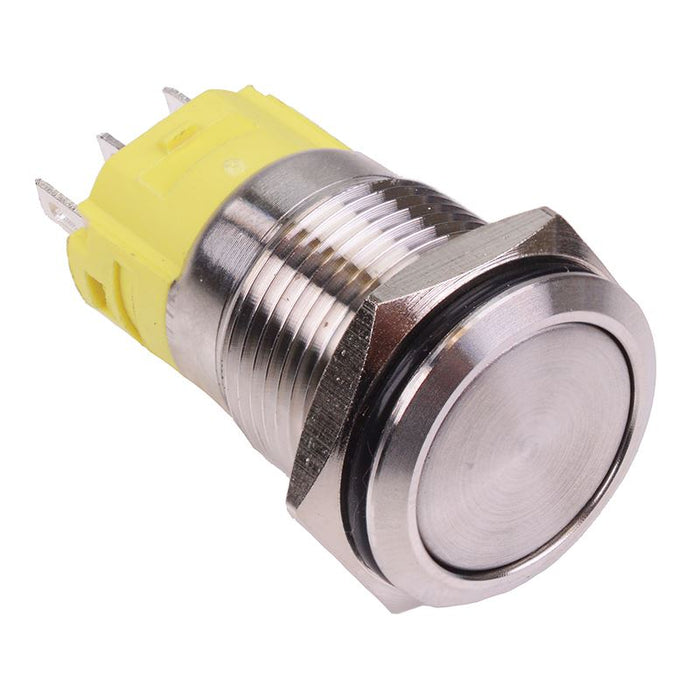

On-On Latching 16mm Vandal Push Button Switch SPDT
SKU 484995
MPN: 484995
Availability:
17 in stock
Original price
£5.90
-
Original price
£5.90
Original price
£5.90
£5.90
£5.90
-
£5.90
Current price
£5.90
Latching vandal resistant push button switch manufactured from stainless steel, featuring SPDT contacts. The switch features IP65 protection rating and 5A current rating, suitable for a wide range of applications.
Latching On-On action IP65 protection rating 16mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC Dimensions: 35.2 x 18mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 16mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
