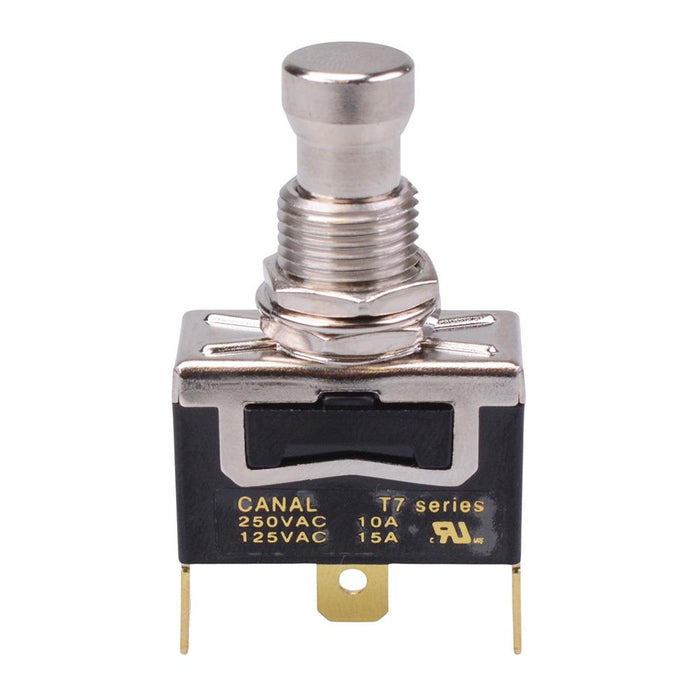

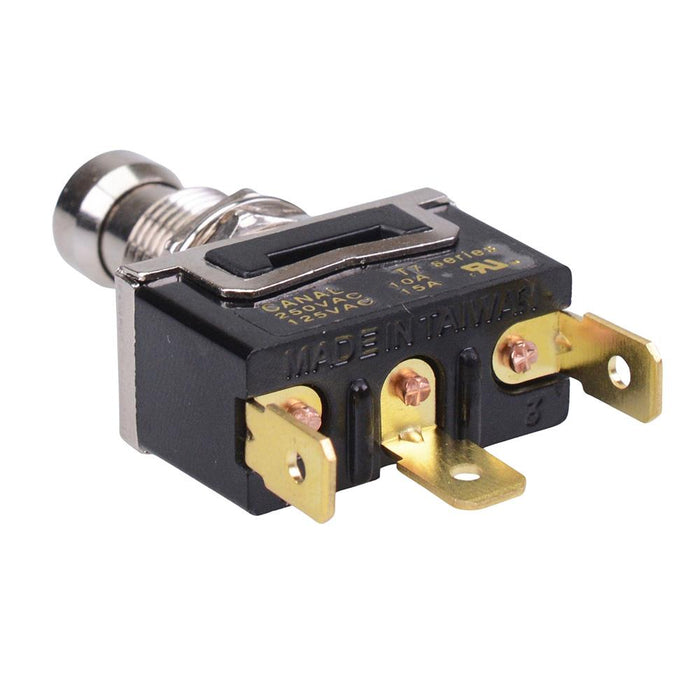

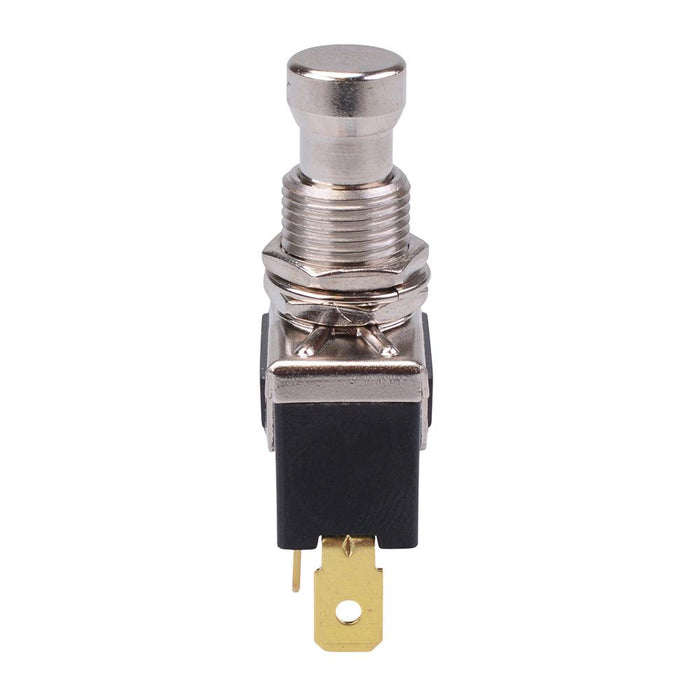

On-On Latching 12mm Heavy Duty Push Button Switch SPDT 15A
by Canal
SKU 491857
MPN: T7A12PUB4H5R
Availability:
Only 2 left!
Original price
£7.26
-
Original price
£7.26
Original price
£7.26
£7.26
-
£7.26
Current price
£7.26
The T7A12PUB4H5R is a SPDT push button switch with momentary On-(On) function and 6.3mm quick connect terminals. The switch requires a 12mm panel cut-out, suitable for demanding applications requiring a reliable switch with high current capabilities.
On-(On) momentary function SPDT contacts 12mm panel cut-out 6.3mm quick connect terminals Rating: 10A 250VAC, 15A 125VAC Dimensions: 51.3 x 28.9 x 14.4mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 15A 125VAC, 10A 250VAC |
| Current Rating | 15A |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 12mm |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
