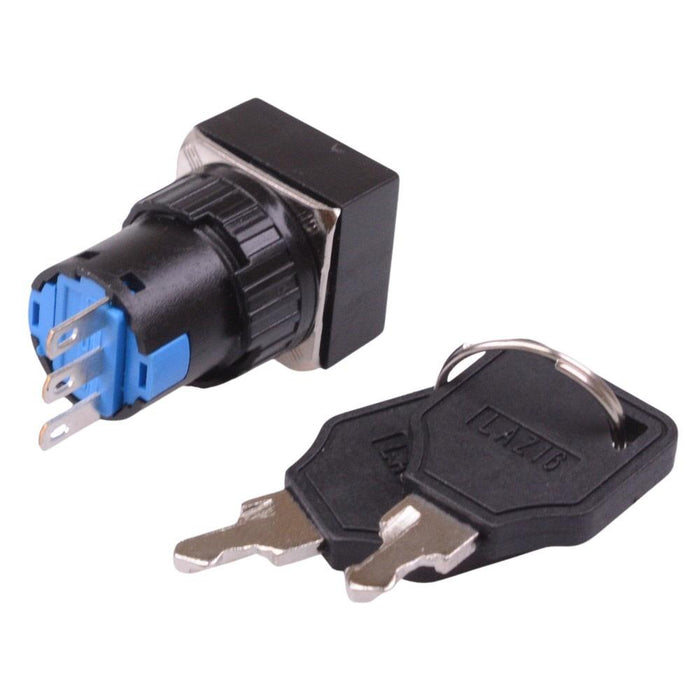

On-On 2 Position 16mm Square Latching Key Switch NO/NC 3A 250V
SKU 489570
MPN: FL6-074 On-On
Availability:
50 in stock
Original price
£2.94
-
Original price
£2.94
Original price
£2.94
Inc VAT
£2.94
-
£2.94
Current price
£2.94
Inc VAT
2 position square latching industrial key switch featuring SPDT contacts, suitable for 16.2mm panel cut-outs. The switch is designed for a wide range of applications including control panels, automation, factories and general purpose uses.
Latching operation 90° 2 positions Key removable in both positions NO/NC SPDT contacts Contact rating: 3A 250V Panel cut-out: 16.2mm Panel thickness: 0.5-6mm 2.8x0.5mm solder/quick-connect terminals Dimensions: 39 x 17 x 17mm (height x width x length)
Specification
| Actuation | Latching |
| Back order lead time | 30 Days |
| Colour | Black |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Key index angle | 90° |
| Key withdrawal position | 1 & 2 |
| Moq | 1 |
| Mounting style | Panel Mount |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 16.2mm |
| Terminal type | Quick connect |
| Voltage rating | 250VAC |
