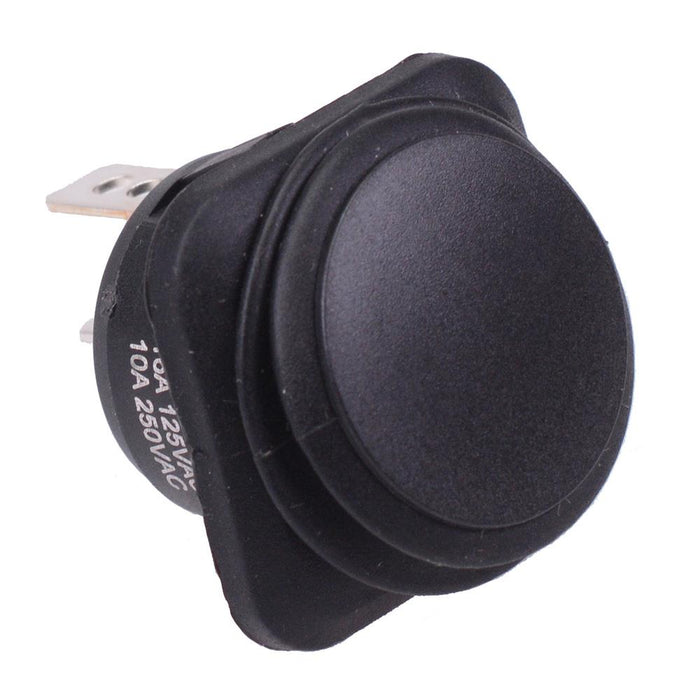

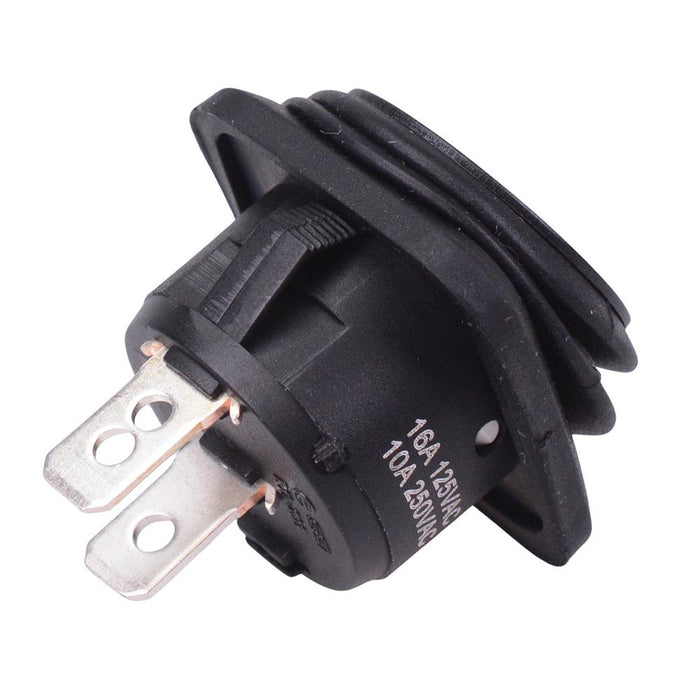

On-Off Waterproof 24mm Round Rocker Switch SPST 10A R13-203A84-01
by SCI
SKU 491482
MPN: R13-203A84-01-BBNN5
Availability:
18 in stock
Original price
£2.64
-
Original price
£2.64
Original price
£2.64
£2.64
-
£2.64
Current price
£2.64
Waterproof round rocker switch featuring SPST contacts and On-Off function. The switch requires a 20mm panel cut-out and features a flange suitable for panel mounting. The switch is rated up to 16A making it suitable for a wide range of AC applications.
Function: On-Off Contacts: SPST Panel cut-out: 24mm Panel thickness: 1-3mm Rating: 10A 250VAC, 16A 125VAC Protection rating: IP65 6.3mm quick connect terminals Dimensions: 39.7 x 30.4 x 30.4mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 16A 125VAC, 10A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 24mm |
| Panel Thickness | 1-3mm |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
