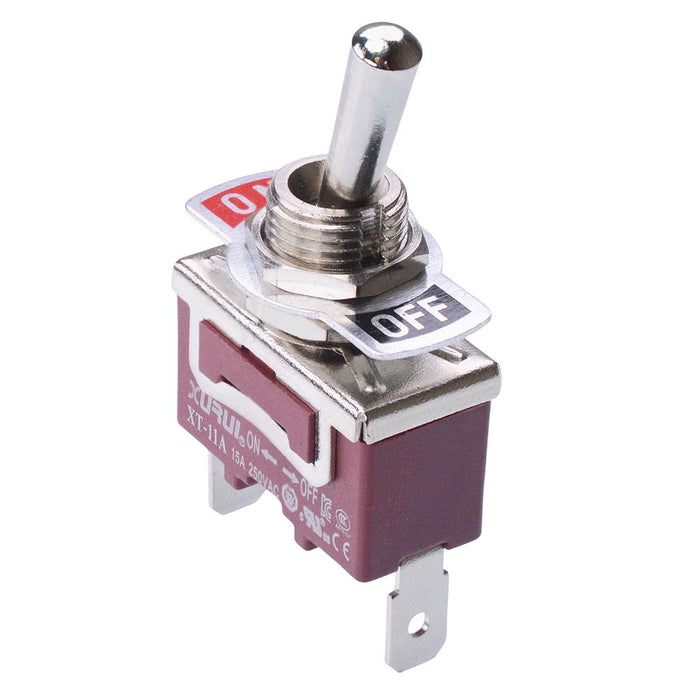

On-Off SPST Toggle Switch 250V AC 15A
SKU 112034
MPN: 112034
Availability:
1053 in stock
Original price
£2.05
-
Original price
£2.05
Original price
£2.05
Inc VAT
£2.05
-
£2.05
Current price
£2.05
Inc VAT
SPST toggle switch with a On-Off operation providing a reliable mechanism suitable for panel mounting applications.
Contact current: 15A Contact voltage: 250VAC 12mm panel cut-out 6.3mm quick-connect terminals Metal lever actuator Includes nameplate CCC, CE, TUV approved Dimensions: 58 x 29 x 16mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back order lead time | 120 Days |
| Contact configuration | SPST |
| Contact rating | 15A 250VAC |
| Current rating | 15A |
| Electrical life | 100,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +80°C |
| Panel cut out | 12mm |
| Protection level | IP40 |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
