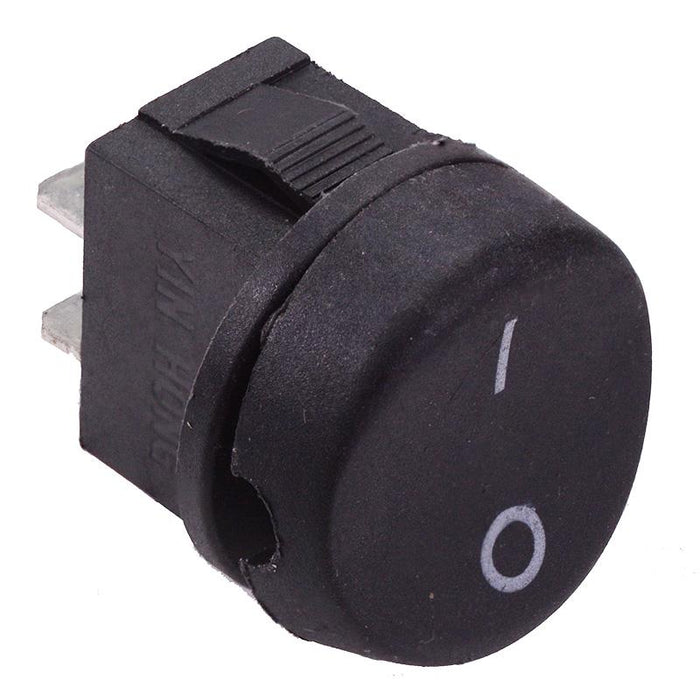

On-Off Round Rocker Switch SPST

SKU 482820

MPN: 482820

Availability:
296 in stock
Original price £0.56 - Original price £0.56
Original price
£0.56 Inc VAT
£0.56 - £0.56
Current price £0.56 Inc VAT
Round rocker switch featuring SPST contacts and on-off action. The switch features a bezeless design and is suitable for industrial and domestic applications.

  • On-off action
  • SPST contacts
  • 4.8mm quick connect terminals
  • Panel cut-out: 20mm
  • Dimensions: 29 x 23mm (Height x Diameter)
  • Rating: 10A 125VAC, 6A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration SPST
    Contact rating 6A 250VAC, 10A 125VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Material PA66
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 20mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
