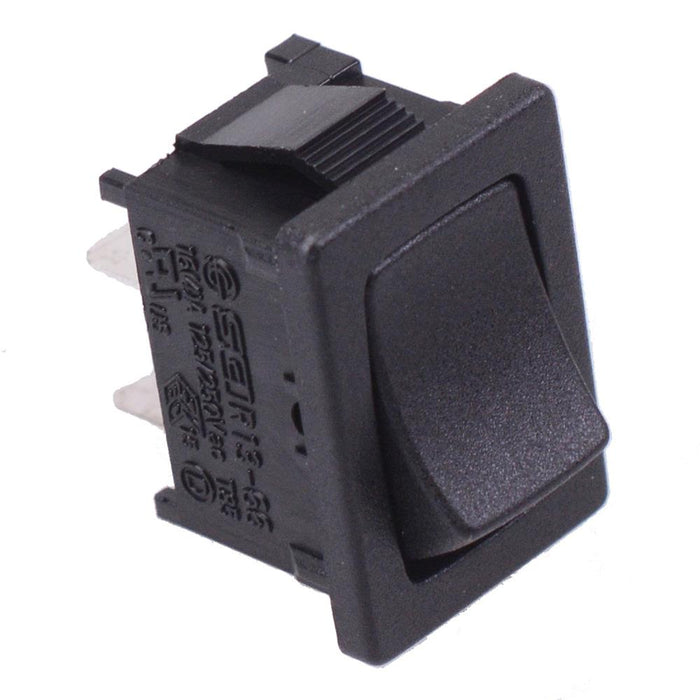

On-Off Rectangle Rocker Switch SPST 10A 250VAC R13-66A-02
by SCI
SKU 491510
MPN: R13-66A-02
Availability:
20 in stock
Original price
£1.30
-
Original price
£1.30
Original price
£1.30
£1.30
-
£1.30
Current price
£1.30

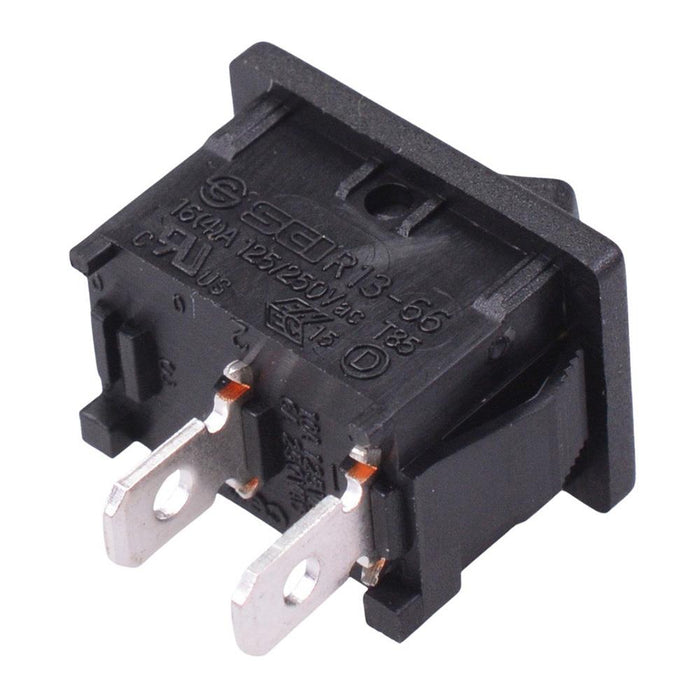

R13-66A-02 rectangle rocker switch featuring SPST contacts and On-Off function. The switch requires a 19.2 x 13mm panel cut-out and features 4.8mm quick connect terminals. The switch is rated up to 16A making it suitable for a wide range of AC applications.
Function: On-Off Contacts: SPST Panel cut-out: 19.2 x 13mm Panel thickness: 0.75-3mm Rating: 10A 250VAC, 16A 125VAC 4.8mm quick connect terminals Dimensions: 21.0 x 15.0 x 24.9mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Rating | 0.75-3mm |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 19.2 x 13mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
