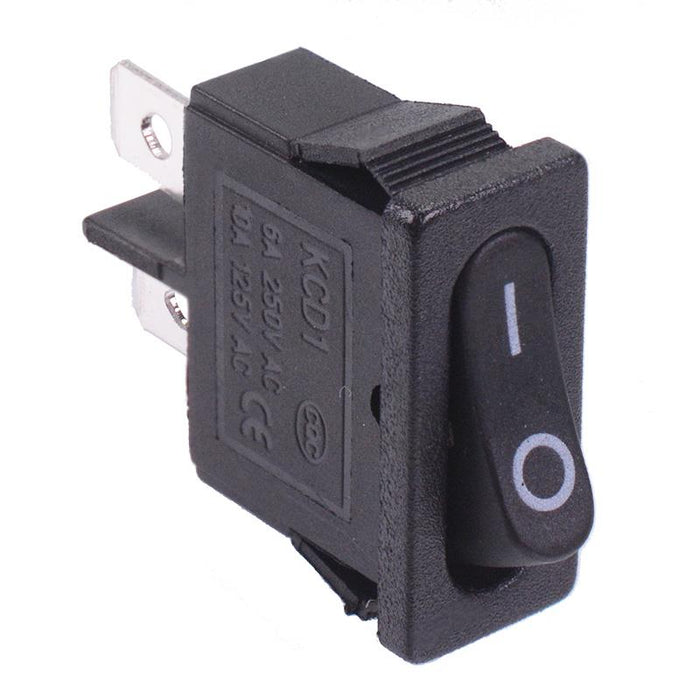

On-Off Rectangle Rocker Switch SPST
SKU 482822
MPN: 482822
Availability:
278 in stock
Original price
£0.51
-
Original price
£0.51
Original price
£0.51
Inc VAT
£0.51
-
£0.51
Current price
£0.51
Inc VAT
On-Off rectangular rocker switch featuring SPST contacts and independent quick connect 4.8mm terminals. The switch is suitable for a wide range of applications including table lamp and other consumer electronics.
On-Off action SPST contacts 4.8mm quick connect terminals Panel cut-out: 19.2 x 6.8mm Dimensions: 31 x 9.6 x 21.4mm (Height x Width x Length) Rating: 10A 125VAC, 6A 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Contact configuration | SPST |
| Contact rating | 6A 250VAC, 10A 125VAC |
| Current rating | 10A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19.2.x 6.8mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
