On-Off Rectangle Rocker Switch 4-Terminals DPST
SKU 130032
MPN: 130032
Availability:
832 in stock
Original price
£0.58
-
Original price
£0.58
Original price
£0.58
Inc VAT
£0.58
-
£0.58
Current price
£0.58
Inc VAT

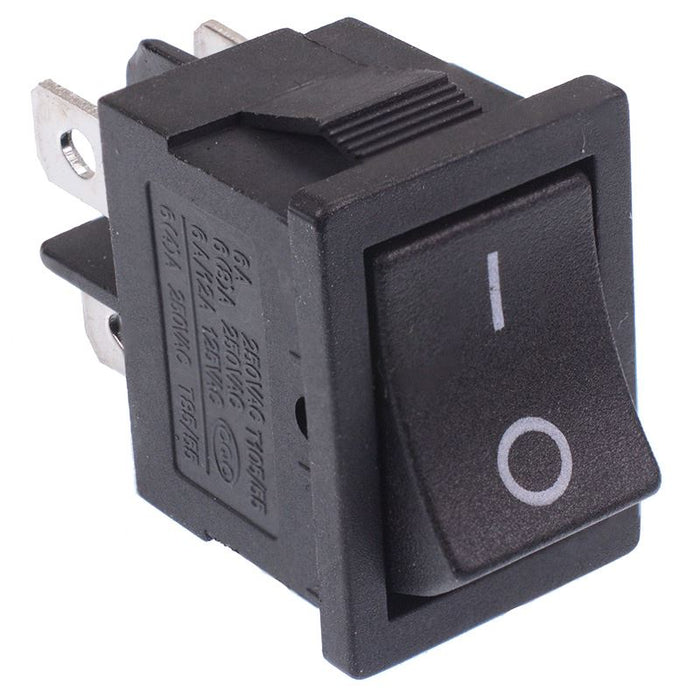

Rectangle rocker switch with DPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.
On-off action DPST contacts 4.8mm quick connect terminals Panel cut-out: 19.2 x 13mm Dimensions: 28 x 21 x 15mm (Height x Length x Width) Maximum current: 6A Maximum voltage: 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Contact configuration | DPST |
| Contact rating | 6A 250VAC |
| Current rating | 6A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19.2 x 13mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
