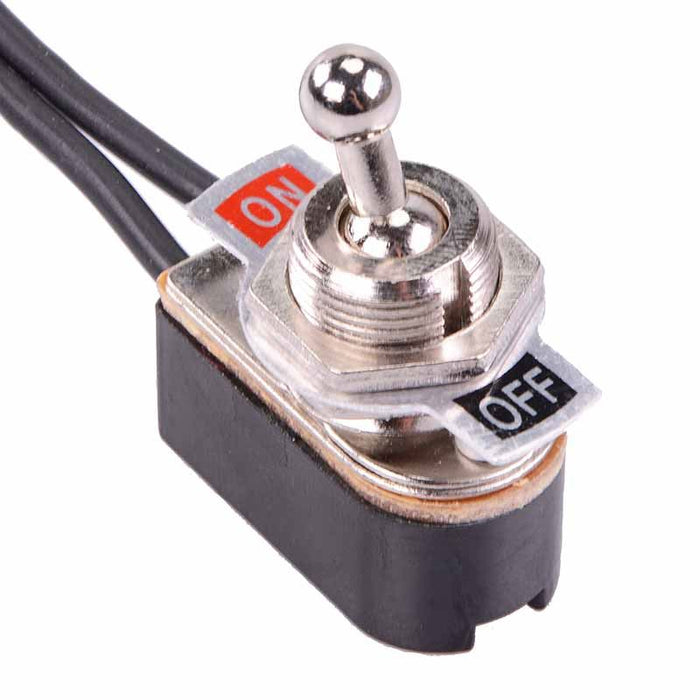

On-Off Prewired Toggle Switch SPST 10A 12VDC

SKU 482224

MPN: 482224

Availability:
75 in stock
Original price £1.18 - Original price £1.18
Original price
£1.18 Inc VAT
£1.18 - £1.18
Current price £1.18 Inc VAT
On-Off prewired toggle switch featuring wire leads and SPST contacts suitable for a wide variety of applications.

  • Rating: 3A 250VAC, 6A 125VAC, 10A 12VDC
  • Panel cut-out: 12mm
  • SPST contacts
  • Latching action
  • 155mm length leads
  • Dimensions: 33.3 x 26 x 13.8mm (height x length x width)
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Contact configuration SPST
    Contact rating 3A 250VAC, 6A 125VAC, 10A 12VDC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 12mm
    Switch operation On-Off
    Terminal type Flying Leads
    Voltage rating 12VDC / 250VAC
