On-Off-On Waterproof Rocker Switch 20A DPDT IP67
SKU 486907
MPN: 486907
Availability:
Out of stock
Sold out
Original price
£1.79
-
Original price
£1.79
Original price
£1.79
Inc VAT
£1.79
-
£1.79
Current price
£1.79
Inc VAT

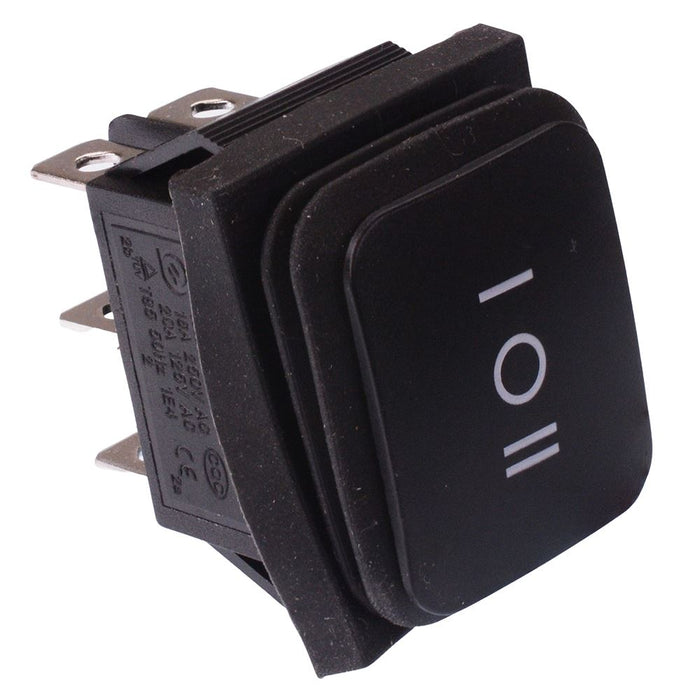

Black rectangular On-Off-On waterproof rocker switch featuring DPDT contacts and quick connect terminals. The switch features IP67 protection and is protected from dust and water ingress.
- On-Off-On action
- 20A 250VAC Rating
- DPDT Contacts
- 28.5 x 21.5mm panel cut-out
- 6.3mm quick connect terminals
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Colour | Black |
| Contact configuration | DPDT |
| Contact rating | 16A 250VAC, 20A 125VAC |
| Current rating | 20A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 28.5 x 21.5mm |
| Protection level | IP67 |
| Switch operation | On-Off-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
