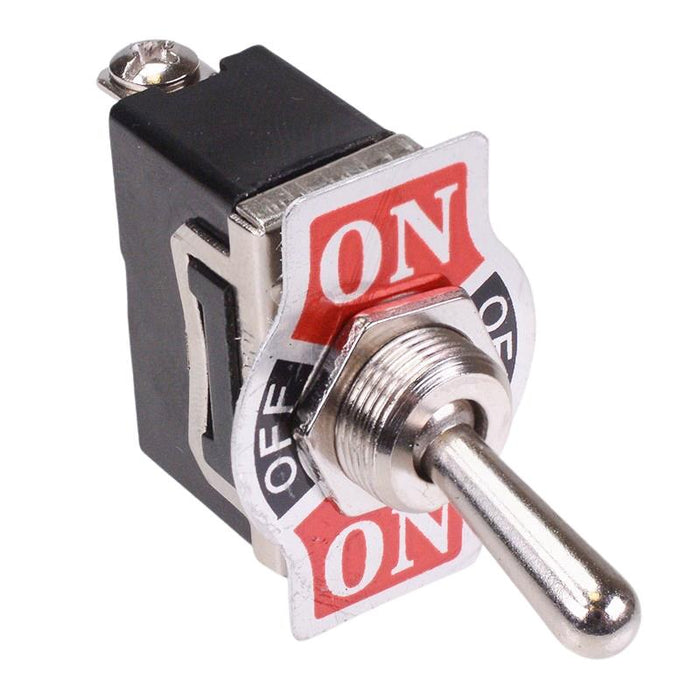

(On)-Off-(On) Toggle Switch Screw Terminals 10A 250VAC SPDT

SKU 112033

MPN: 112033

Availability:
325 in stock
Original price £1.88 - Original price £1.88
Original price
£1.88 Inc VAT
£1.88 - £1.88
Current price £1.88 Inc VAT
Standard size toggle switch with screw terminals and supplied with indicator plate.

  • (On)-Off-(On) action
  • SPDT contacts
  • 12mm panel cut-out
  • 10A 250VAC rating
  • () indicates momentary
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 10A 250VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 3
    Operating temperature -25°C to +85°C
    Panel cut out 12.2mm
    Switch operation (On)-Off-(On)
    Terminal type Screw
    Voltage rating 250VAC
