On-Off-On Red LED illuminated Toggle Switch 20A 12V SPDT
SKU 489618
MPN: SF50770S-3
Availability:
100 in stock
Original price
£3.96
-
Original price
£3.96
Original price
£3.96
Inc VAT
£3.96
-
£3.96
Current price
£3.96
Inc VAT

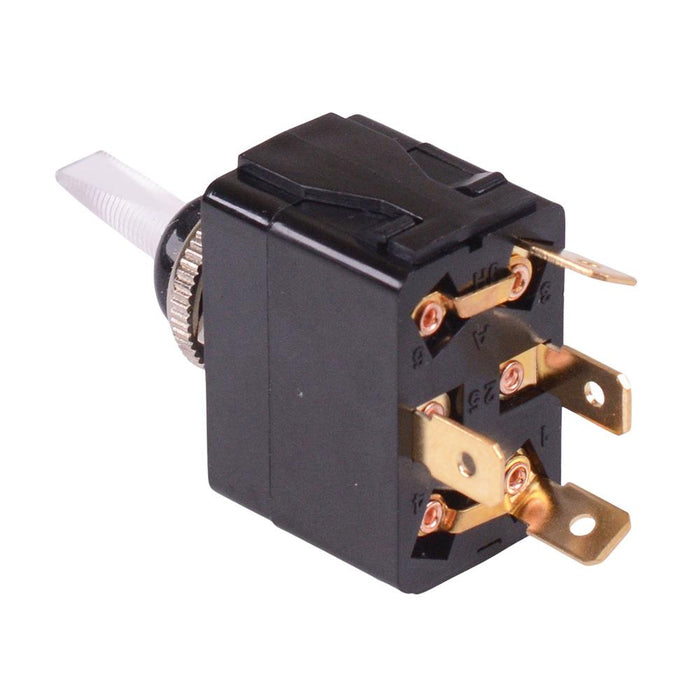

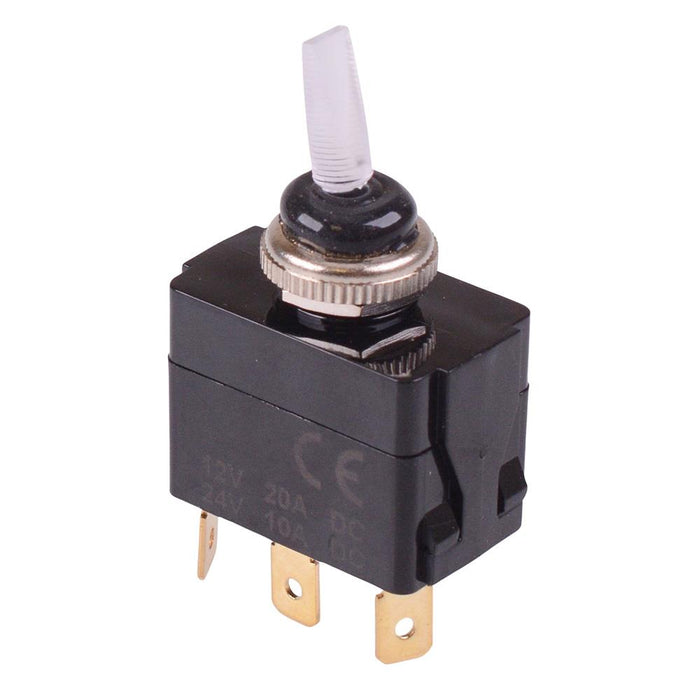

Red illuminated toggle switch featuring On-Off-On action and SPDT contacts. The switch features a waterproof boot nut and 6.3mm quick connect terminals. The switch is suitable for a wide range of 12V or 24V automotive applications.
On-Off-On action SPDT contacts 6.3mm quick connect terminals Rating: 12VDC 20A, 24VDC 10A Panel cut-out: 12mm Dimensions: 62.1 x 35.3 x 21.1mm (height x length x width)
Specification
| Actuation | Latching |
| Back order lead time | 120 Days |
| Contact configuration | SPDT |
| Contact rating | 20A 12VDC, 10A 24VDC |
| Current rating | 20A |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12V / 24V |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 3 |
| Panel cut out | 12mm |
| Panel thickness | 3mm |
| Switch operation | On-Off-On |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
