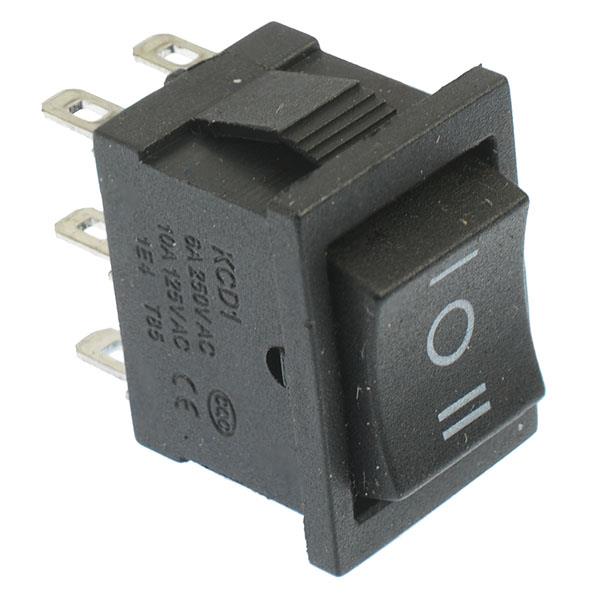

On-Off-On Rectangle Rocker Switch DPDT 6A 250VAC
SKU 482248
MPN: 482248
Availability:
23 in stock
Original price
£0.78
-
Original price
£0.78
Original price
£0.78
Inc VAT
£0.78
-
£0.78
Current price
£0.78
Inc VAT
On-Off-On rectangular rocker switch featuring DPDT contacts and 2.8mm quick connect terminals, suitable for domestic and industrial applications.
On-Off-On operation DPDT contacts 2.8mm quick connect terminals Snap-in mounting Rating: 10A 125VAC / 6A 250VAC Panel Cut-Out: 19.2 x 13mm Dimensions: 24.6 x 21.3 x 15.2mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Contact configuration | DPDT |
| Contact rating | 6A 250VAC, 10A 125VAC |
| Current rating | 10A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19.2 x 13mm |
| Switch operation | On-Off-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
