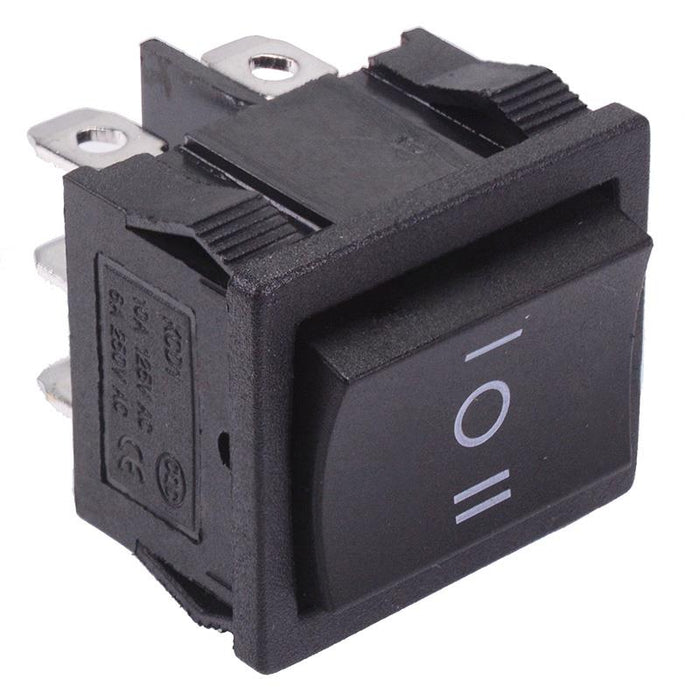

On-Off-On Rectangle Rocker Switch DPDT

SKU 482819

MPN: 482819

Availability:
255 in stock
Original price £0.68 - Original price £0.68
Original price
£0.68 Inc VAT
£0.68 - £0.68
Current price £0.68 Inc VAT
Rectangle rocker switch featuring DPDT contacts and 3 position on-off-on action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

  • On-Off-On action
  • DPDT contacts
  • 4.8mm quick connect terminals
  • Panel cut-out: 20 x 22mm
  • Dimensions: 25 x 21 x 15mm (Height x Length x Width)
  • >
  • Rating: 10A 125VAC, 6A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration DPDT
    Contact rating 6A 250VAC, 10A 125VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Material PA66
    Mounting style Panel
    Number of poles 2
    Number of positions 3
    Operating temperature -25°C to +85°C
    Panel cut out 20 x 22mm
    Switch operation On-Off-On
    Terminal type Quick Connect
    Voltage rating 250VAC
